LHB Series Heavy Duty Linear LED High Bay

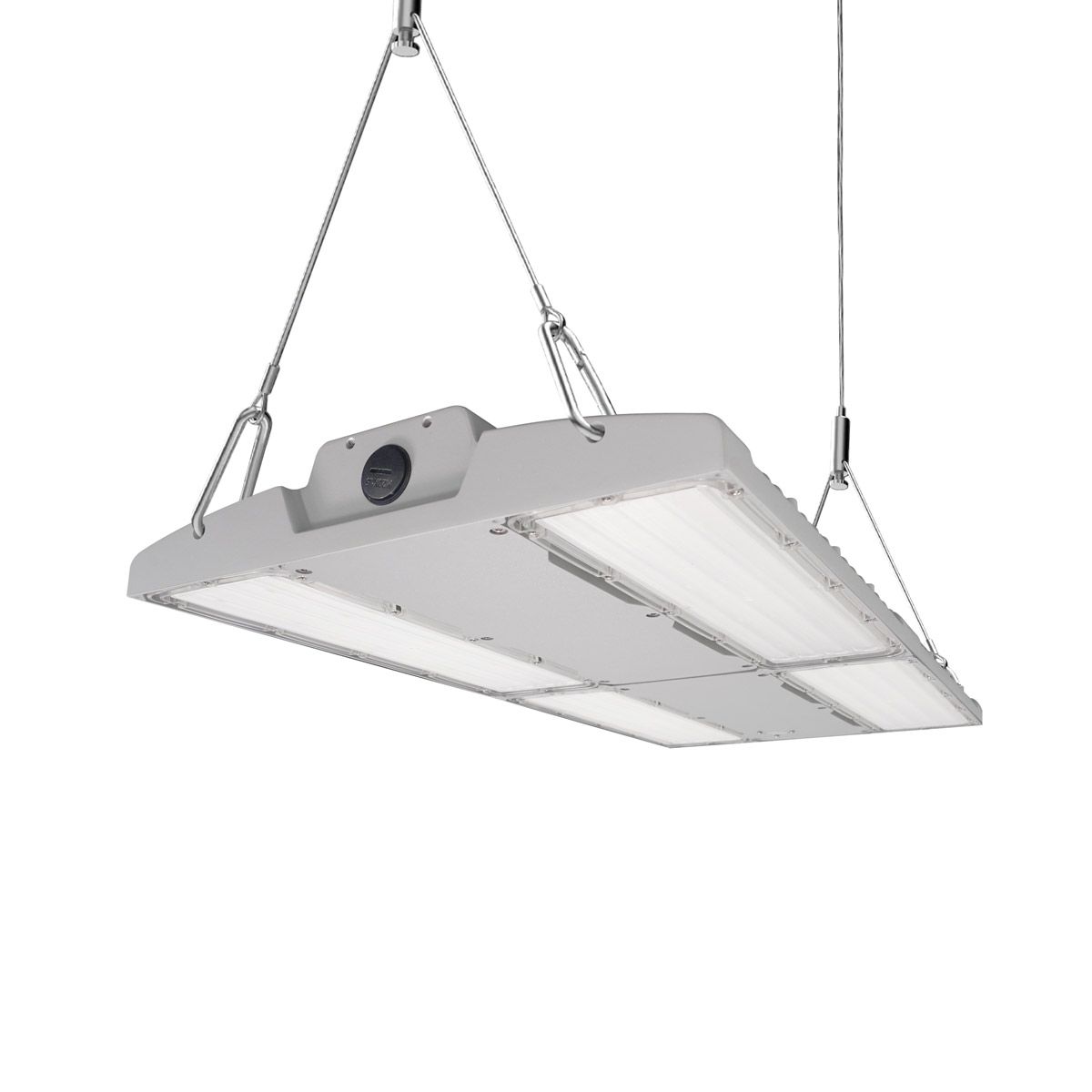

LHB-100 LED Linear High Bay

LHB-100 LED Linear High Bay

Linear LED High Bay available in five different beam angles to meet every application's needs. IP66 & IK10 housing ensure durability even in the toughest industrial and athletic environments.

  • 14,000 lumens
  • 100W
  • 4000K or 5000K CCT

CONFIGURE & REQUEST QUOTE

Select your options & add ons, then click Add to Quote. You can add multiple products or configurations before submitting your quote request.

CCT
Beam Angle
Voltage

SKU:

Return to main product:
LHB Series Heavy Duty Linear LED High Bay View full details

DOWNLOADS

Download Spec Sheet LHB Series Data Sheet

DLC SPECIFICATIONS

LLTVLHB-100-50-LW DLC Specifications

Configuration
5000K
80˚ x 100˚ (Aisle wide beam)
120-277V
DLC Classification
Premium
DLC Lumens
14870 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
149 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-50-LW-480 DLC Specifications

Configuration
5000K
80˚ x 100˚ (Aisle wide beam)
277-480V
DLC Classification
Premium
DLC Lumens
14870 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
149 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-50-LM DLC Specifications

Configuration
5000K
60˚ x 100˚ (Aisle medium beam)
120-277V
DLC Classification
Premium
DLC Lumens
14870 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
149 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-50-LM-480 DLC Specifications

Configuration
5000K
60˚ x 100˚ (Aisle medium beam)
277-480V
DLC Classification
Premium
DLC Lumens
14870 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
149 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-50-LN DLC Specifications

Configuration
5000K
25˚ x 85˚ (Aisle narrow beam)
120-277V
DLC Classification
Premium
DLC Lumens
14870 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
149 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-50-LN-480 DLC Specifications

Configuration
5000K
25˚ x 85˚ (Aisle narrow beam)
277-480V
DLC Classification
Premium
DLC Lumens
14870 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
149 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-50-60 DLC Specifications

Configuration
5000K
60˚
120-277V
DLC Classification
Premium
DLC Lumens
14870 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
149 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-50-60-480 DLC Specifications

Configuration
5000K
60˚
277-480V
DLC Classification
Premium
DLC Lumens
14870 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
149 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-50-90 DLC Specifications

Configuration
5000K
90˚
120-277V
DLC Classification
Premium
DLC Lumens
14870 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
149 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-50-90-480 DLC Specifications

Configuration
5000K
90˚
277-480V
DLC Classification
Premium
DLC Lumens
14870 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
149 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-40-LW DLC Specifications

Configuration
4000K
80˚ x 100˚ (Aisle wide beam)
120-277V
DLC Classification
Premium
DLC Lumens
14700 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
147 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-40-LW-480 DLC Specifications

Configuration
4000K
80˚ x 100˚ (Aisle wide beam)
277-480V
DLC Classification
Premium
DLC Lumens
14700 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
147 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-40-LM DLC Specifications

Configuration
4000K
60˚ x 100˚ (Aisle medium beam)
120-277V
DLC Classification
Premium
DLC Lumens
14700 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
147 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-40-LM-480 DLC Specifications

Configuration
4000K
60˚ x 100˚ (Aisle medium beam)
277-480V
DLC Classification
Premium
DLC Lumens
14700 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
147 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-40-LN DLC Specifications

Configuration
4000K
25˚ x 85˚ (Aisle narrow beam)
120-277V
DLC Classification
Premium
DLC Lumens
14700 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
147 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-40-LN-480 DLC Specifications

Configuration
4000K
25˚ x 85˚ (Aisle narrow beam)
277-480V
DLC Classification
Premium
DLC Lumens
14700 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
147 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-40-60 DLC Specifications

Configuration
4000K
60˚
120-277V
DLC Classification
Premium
DLC Lumens
14700 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
147 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-40-60-480 DLC Specifications

Configuration
4000K
60˚
277-480V
DLC Classification
Premium
DLC Lumens
14700 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
147 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-40-90 DLC Specifications

Configuration
4000K
90˚
120-277V
DLC Classification
Premium
DLC Lumens
14700 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
147 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-100-40-90-480 DLC Specifications

Configuration
4000K
90˚
277-480V
DLC Classification
Premium
DLC Lumens
14700 lm
DLC Wattage
100.0 Watts
Luminous Efficacy
147 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

ACCESSORIES

Mounting options: Use a safety line for hanging installation, or install an optional fixed ceiling bracket or a ±60° adjustable bracket for ceiling mounting.

Sensors: Dimming capability is included. Add more controls with a microwave or PIR motion sensor and/or a daylight sensor with daylight harvesting function. Motion sensors are IP65 rated, daylight sensor is IP20 rated. A remote controller is available for programming.
