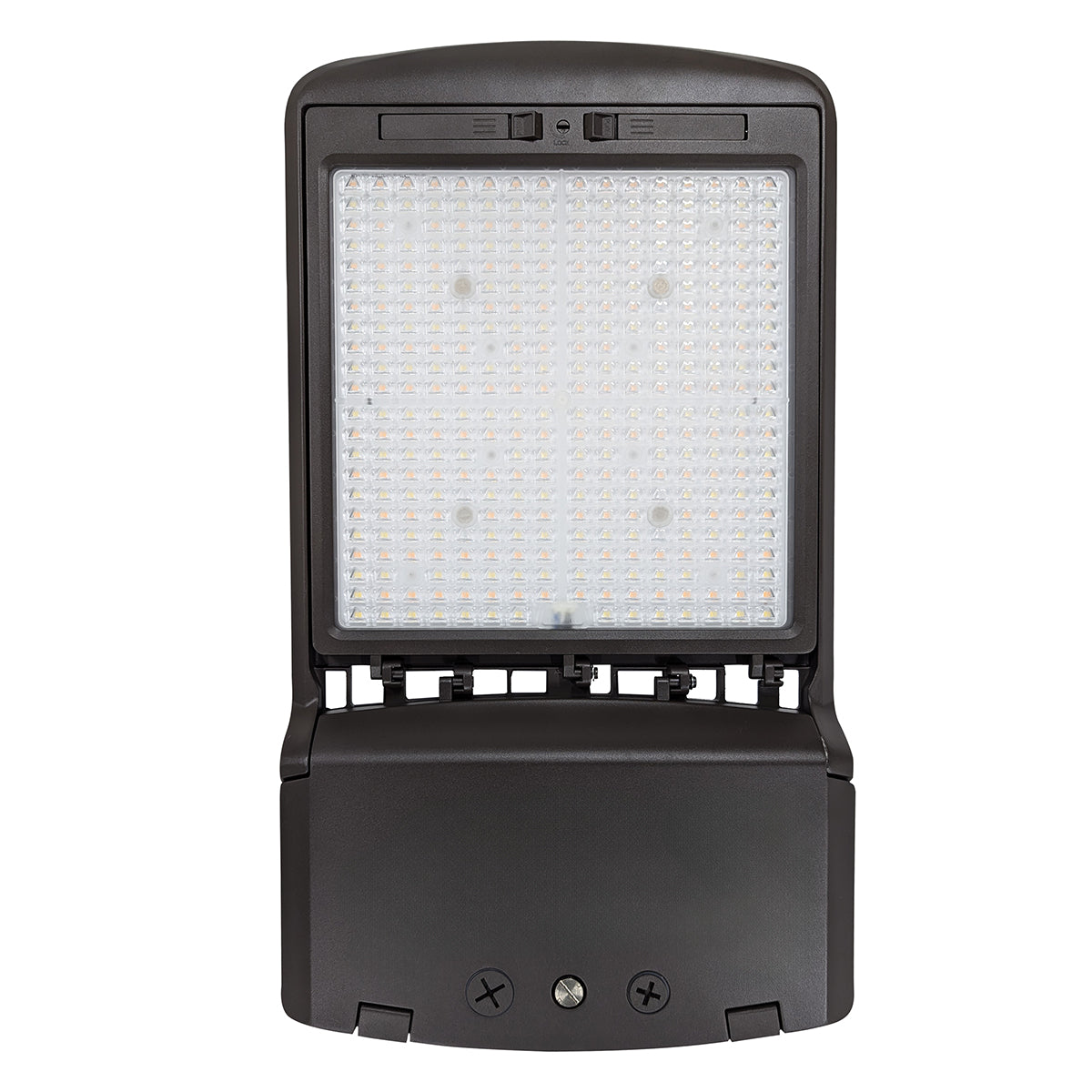

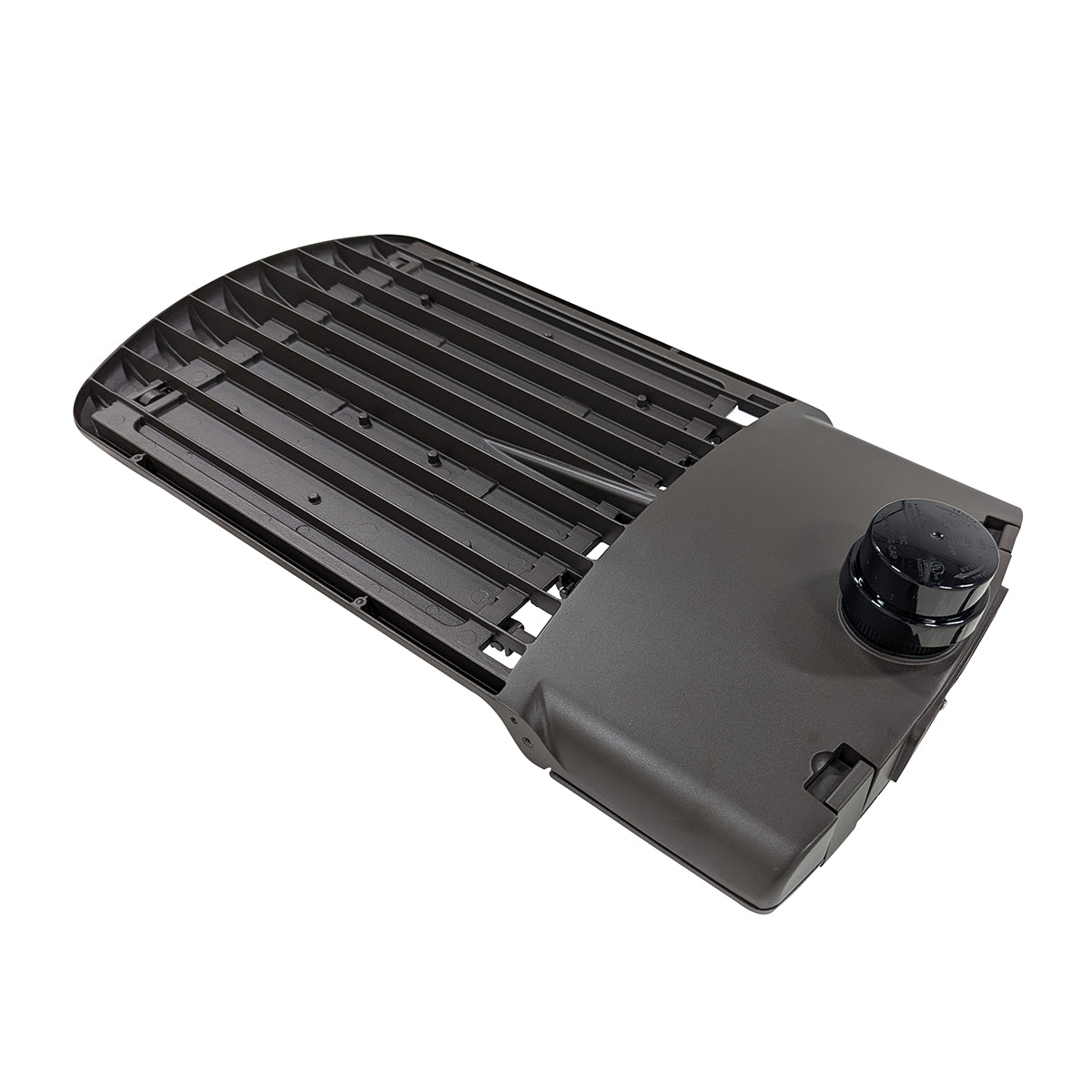

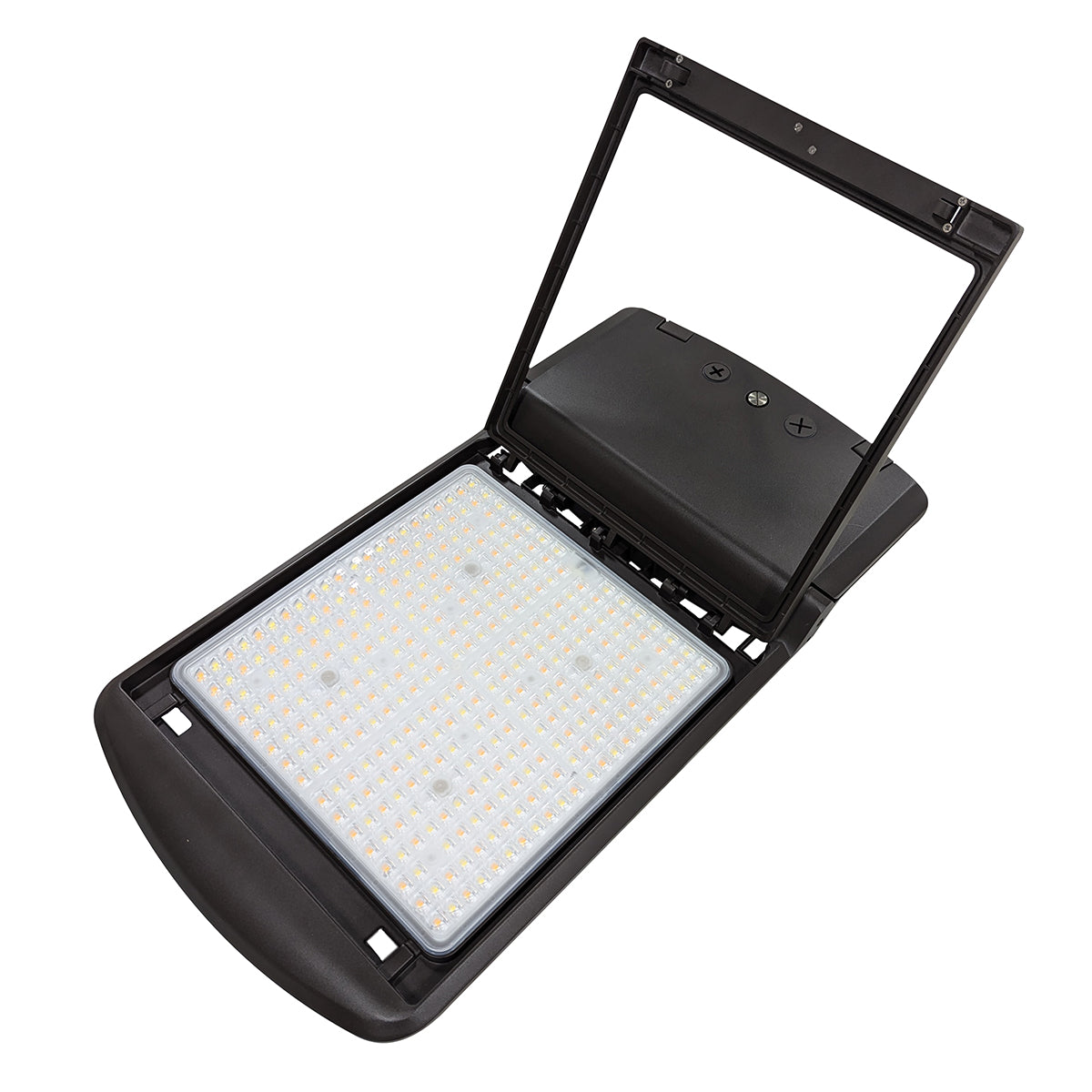

AL02 Series LED Area Light

AL02 Series LED Area Light

Enjoy visibility, safety, and security in large outdoor spaces while saving money with the AL02 Series of LED area lights. Parking lot and other outdoor area lights often operate for extended periods, which can add up in energy costs. At 160 lm/W luminous efficacy, however, the AL02 area lights are very efficient at converting energy to light, ensuring you spend as little as possible on electricity while gaining maximum protection for your property and the safety of your employees and visitors.

DLC Premium UL Listed Wattage Selectable CCT Selectable 120-277V 277-480V 0-10V Dimming IP-65 Rated Enclosure IK-08 Impact Rating
View full details

Quick Ship AL02 Series Area Lights

Our base model is available in two wattage/CCT packages, two lighting distribution patterns, and three mounting options. For the full range of models available in this series, refer to the AL02 Series Spec Sheet and contact your lighting rep or LED Living for a quote.

DETAILS

AL02 Area Lights for All Your Needs

With multiple wattages, color temperatures, and beam angles, our AL02 LED Area lights will keep your parking lot and other large outdoor areas brilliantly lit while costing you 75% less in energy use than HID lights.

Each model comes with three selectable wattages, allowing you to set the best balance of light output and energy consumption for your unique application.

Likewise, you're able to select between a warmer 3000K, a neutral 4000K, or a cooler 5000K color temperature during installation, allowing you to blend the lighting with the surrounding environment or match existing lighting schemes.

Combined, these features allow the luminaires to be adjusted as needs evolve or the parking lot layout changes. And they simplify the procurement processes. For distributors and others who stock lights, the wattage and CCT selectability reduce the number of models needed on the shelves while still covering a wide range of specifications.

You're in Control

With dimming as a standard feature, you have access to smooth and precise control over the light's intensity. Match your light output to actual needs in real time for an even lower energy bill.

AL02 area lights can also be configured with a photocell for daylight sensing, a PIR sensor for motion sensing, or both together for full control over lighting performance and energy costs.

Built to Last

These luminaires are designed to minimize the Effective Projected Area (EPA). The resulting smaller surface area reduces wind load, requires less structural reinforcement, and reduces the amount of material needed in construction of the fixture, for a more environmentally and cost-effective option.

The robust, weather-resistant exterior of these luminaires effectively protects the internal components, ensuring longevity and reliability of the light, while flow-through ventilation enhances the performance and extends the life of these components. These luminaires are also protected from sudden spikes in electrical voltage, thanks to the included surge protection.

Contact us, or ask your lighting representative, about AL02 outdoor area lights today.

DOWNLOADS

KEY SPECIFICATIONS

Wattage & Lumens 70W Selectable (70/50/35W), Up to 11,200 lumens
100W Selectable (100/80/60W), Up to 16,000 lumens
150W Selectable (150/120/100W), Up to 23,250 lumens
200W Selectable (200/150/100W), Up to 32,000 lumens
240W Selectable (240/200/150W), Up to 37,200 lumens
300W Selectable (300/250/200W), Up to 46,500 lumens
375W Selectable (375/300/260W), Up to 54,375 lumens
System Efficacy Up to 160 lm/W
CRI >80
CCT 3000K/4000K/5000K Selectable
Light Distribution Pattern Type III, Type V
Enclosure Rating IP65, IK08
Mounting Adjustable Square & Round Pole Mount, Slipfitter Mount, Trunnion Mount, Universal Bracket, Yoke Mount
Input Voltage 120-277VAC / 277-480VAC, 50/60Hz (347-480VAC available by special order)
Housing Rugged, Sealed Die-Cast Aluminum
Finish Dark Bronze or Black
Warranty 5 Years
Certifications DLC Premium, UL
DLC Listing Primary Use Category Outdoor Pole/Arm-Mounted Area and Roadway Luminaires

*IES file links on this page may not contain an IES file for every available configuration of the model.
