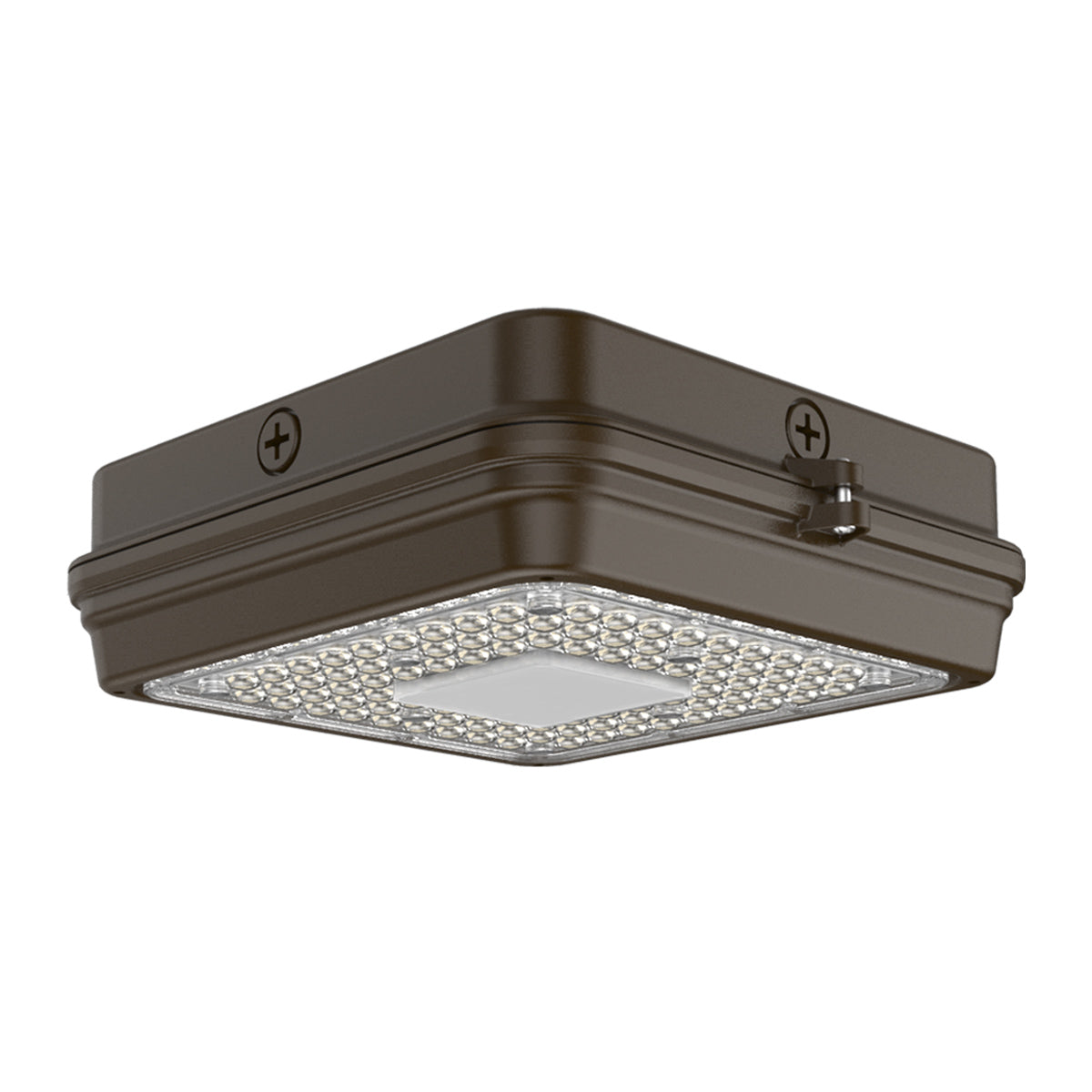

CP04 Series Canopy Light for Parking Garages

CP04 Series Canopy Light for Parking Garages

Save on energy costs while giving your parking garage, service corridors, covered outdoor spaces, and other areas a stylish, functional, long-life upgrade.

  • Up to 145 lm/W
  • 236,000-hour average operating life (L70)
  • 4000K CCT
  • IP66 and IK08 rated housing
  • 5-year warranty
DLC Premium ETL Listed 120-277V 277-480V 1-10V Dimming IP-66 Rated Enclosure IK-08 Impact Rating
View full details

DETAILS

Brilliant Uniform Light, Designed for Durability & Savings

Lower your energy and maintenance costs while giving your space a stylish, functional upgrade. Our rugged, long-life CP04 canopy lights pack high performance into a modern, professional appearance that blends seamlessly with commercial architecture.

Easy Upgrade to Lower Cost Lighting

Reduce your energy and maintenance costs by replacing HID or fluorescent fixtures with the CP04's high-efficiency energy savings and extended operating life.

Uniform Lighting Coverage

With its Type V light distribution pattern, the CP04 distributes light uniformly in all directions, reducing shadows and enhancing visibility and safety.

Flexible Installation

For lower ceilings, CP04 lights can be surface mounted to maintain adequate clearance. High ceilings can benefit from the CP04's ability to be pendant mounted on 3/4" NPS pipe.

DOWNLOADS

Download Spec Sheet Spec Sheet - CP04 Series Canopy Lights

Download Instruction Manual Installation Manual - CP04 Series Canopy Lights

Download Instruction Manual Installation Manual - CP04 Series Canopy Lights with Emergency Battery

*IES file links on this page may not contain an IES file for every available configuration of the model.

CP04 Canopy Lights

Our CP04 LED Canopy Lights with Type V light distribution are perfect for parking garages, public transportation shelters, pavilions, and more.

KEY SPECIFICATIONS

Wattage & Lumens 40W: 5,640 lumens
60W: 8,649 lumens
System Efficacy 140 to 145 lm/W
CRI >70
CCT 4000K (5000K optional; call for availability)
Beam Angle Type V
Controls 1-10V dimming
(Optional motion sensor; call for availability)
Input Voltage 120-277VAC (277-480VAC available by special order)
Surge Protection 6kV line-line, 10kV line-earth
Warranty 5 Years
Certifications DLC Premium, ETL
DLC Listing Primary Use Category Parking Garage Luminaires
