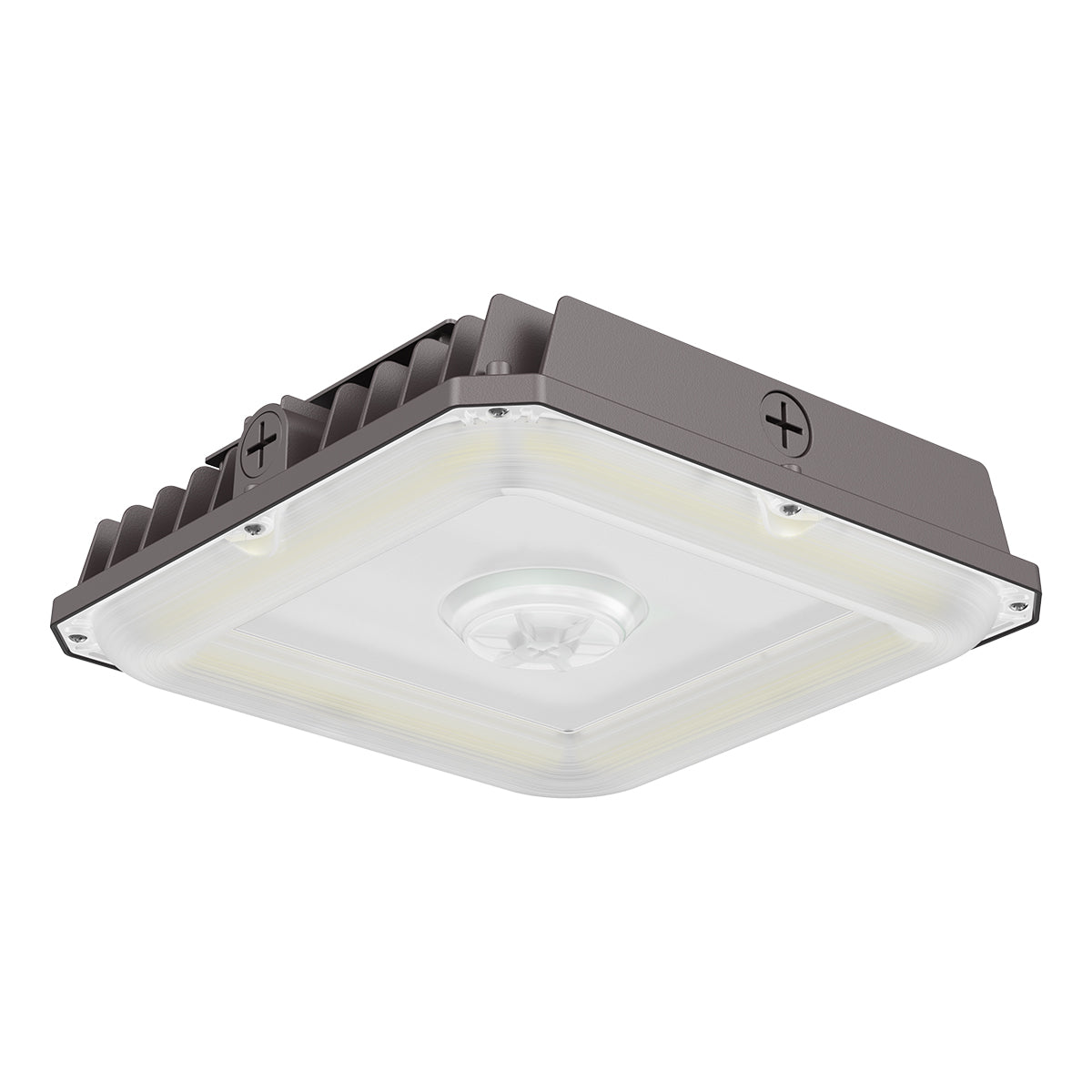

CP05 Parking Garage Canopy Light
CP05 Parking Garage Canopy Light
Brighten parking garages and covered outdoor spaces with efficient, durable lighting. The CP05 delivers a balance of improved safety, visibility, and efficiency.
- 40W/60W/75W
- 3000K/4000K/5000K
- IP65-Rated, Die-Cast Aluminum Housing
- Impact-Resistant, Polycarbonate Lens
- 5-Year Warranty
DETAILS
Efficient, Built-to-Last Parking Garage Lights
Engineered for long-term performance, the CP05 ensures bright, uniform illumination while reducing maintenance costs.
Durable & Weather Ready
With an IP65 rating and rugged aluminum housing, the CP05 withstands tough conditions while maintaining high performance.
Rugged, Weather-Resistant Design
An IP65-rated, die-cast aluminum housing with a tempered glass cover ensures long-term durability against harsh conditions.
Energy Saving & Customizable
With selectable wattages and CCT, this fixture adapts to different lighting needs while delivering up to 135 lm/W efficiency.
Applications
Quick-Ship CP05 Canopy Lights
-
CP05 75W Canopy Light
- 40/60/75W
- 5,400 to 10,125 lumens
- 3000K/4000K/5000K CCT
40/60/75WCP05 75W Canopy Light
- 5,400 to 10,125 lumens
- 3000K/4000K/5000K CCT
DOWNLOADS
KEY SPECIFICATIONS
| Lumens Packages | 75W Selectable (40/60/75W), 5,400/8,100/10,125 lumens |
| System Efficacy | Up to 135 lm/W |
| CRI | 80 |
| CCT | 3000K/4000K/5000K Selectable |
| Beam Angle | 145° |
| Input Voltage | 120-277VAC |
| Mounting | Surface Mount, Pendant Mount |
| Warranty | 5 Years |
| Certifications | DLC Premium, UL |
*IES file links on this page may not contain an IES file for every available configuration of the model.
