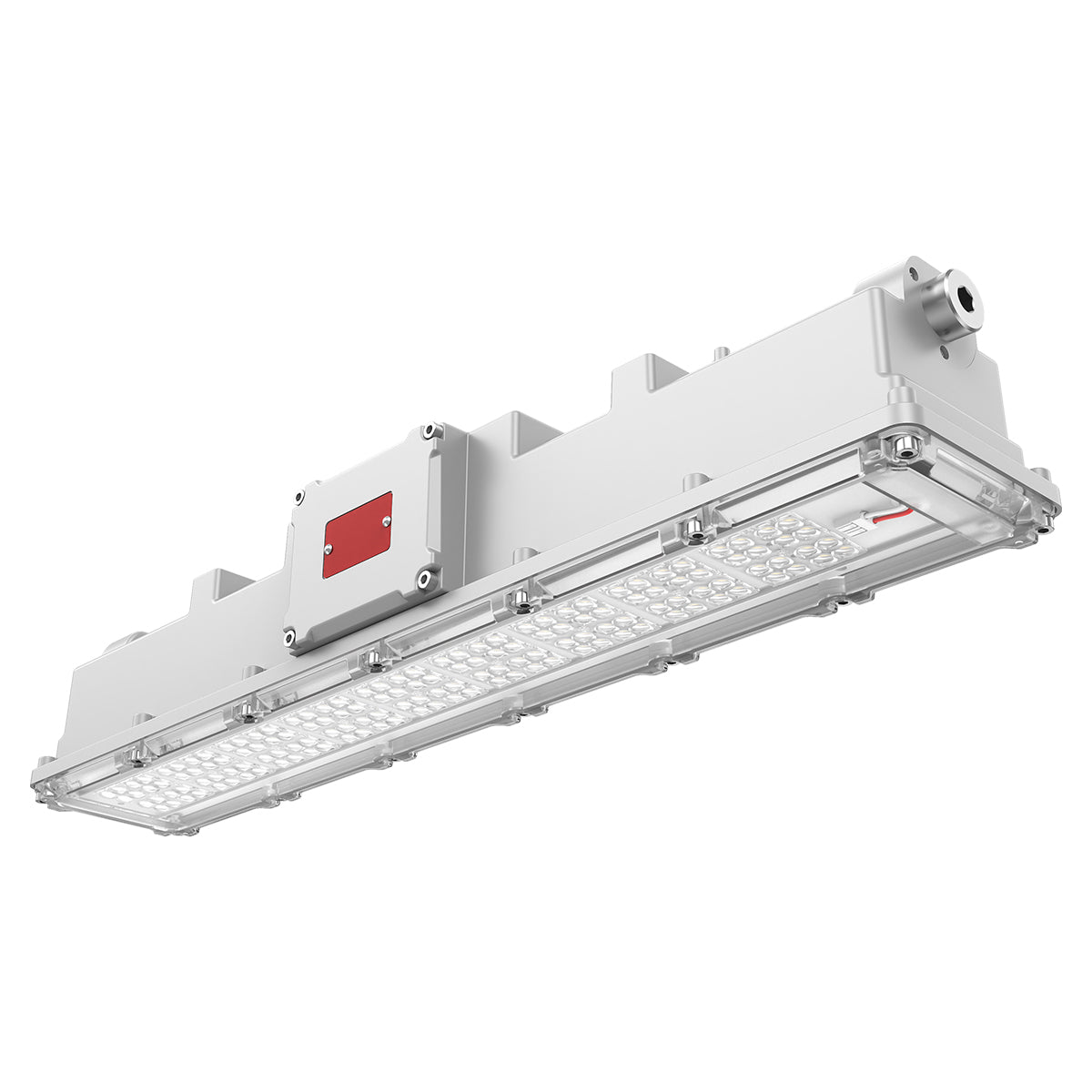

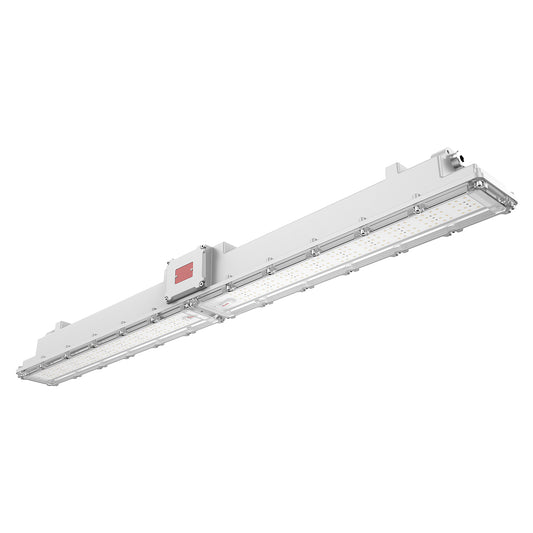

HL01 Series Explosion-Proof Linear LED Light

HL01 Series Explosion-Proof Linear LED Light

This narrow, linear fixture combines a robust structure with outstanding performance, offering superior waterproof, dustproof, anti-corrosion, and anti-vibration features.

  • 3,200 to 16,000 lumens
  • 5000K CCT
  • IP66 & IK08 rated
  • Corrosion-resistant marine-grade build
UL Listed CSA 100-277V 277-480V IP-66 Rated Enclosure IK-08 Impact Rating
View full details

DETAILS

Durable Linear LED Lighting for Hazardous Environments

Designed for harsh and hazardous applications, the HL01 linear LED light is the ideal illumination solution for industries requiring safety, durability, and efficiency.

High Efficiency and Long Lifespan

With a luminous efficacy of 160 lm/W and an average lifetime of 282,900 hours (L70), this LED linear light delivers exceptional energy savings and reliability. And tt operates in temperatures ranging from -40°F to 104°F, ensuring consistent performance in extreme conditions.

Easy Installation and Customizable Mounting

Featuring loop-in/loop-out wiring for easy installation, this luminaire comes standard with trunnion and 3/4" NPT pendant mount options. Models with ceiling, loop, hoop, or recessed mounting brackets are available by special order.

Durable and Safe Design

Constructed with corrosion-resistant fiberglass-reinforced polycarbonate housing and a polycarbonate lens, this light is built to withstand harsh environments. It includes surge protection up to 6kV line-line and 10kV line-earth, ensuring durability and safety.

Applications

This linear light meets stringent safety standards, including UL844 Class I Division 2, Class II Division 2, Class III, UL1598A Marine, IECEx, and ATEX certifications. It’s ideal for use in chemical plants, oil and gas facilities, pulp and paper mills, metal foundries, manufacturing plants, waste and sewage treatment facilities, power generation stations, and paint spray booths.

DOWNLOADS

Download Spec Sheet Spec Sheet - HL01 Explosion Proof Luminaires

Download Install Guide Installation Manual - HL01 Explosion Proof Luminaires

*IES file links on this page may not contain an IES file for every available configuration of the model.

HL01 Explosion-Proof Linear Luminaires

KEY SPECIFICATIONS

Wattage & Lumens 20W, 3,200 lumens
30W, 4,800 lumens
40W, 6,400 lumens
50W, 8,000 lumens
60W, 9,600 lumens
70W, 11,200 lumens
80W, 12,800 lumens
100W, 16,000 lumens
System Efficacy 160 lm/W
CRI 70 (80 and 90 available by special order)
CCT 5000K (2000K – 6500K, Red, Green, Blue, Amber available by special order)
Beam Angle 120° (17°, 30°, 55°, 85°, Type I, Type II, Type IV, Type V available by special order)
Input Voltage 100-277VAC (277-480VAC available for 30W-100W by special order)
Surge Protection 20-50W: 4kV line-line, 6kV line-earth
60-100W: 6kV line-line, 10kV line-earth
Warranty 5 Years
Certifications UL, CSA
