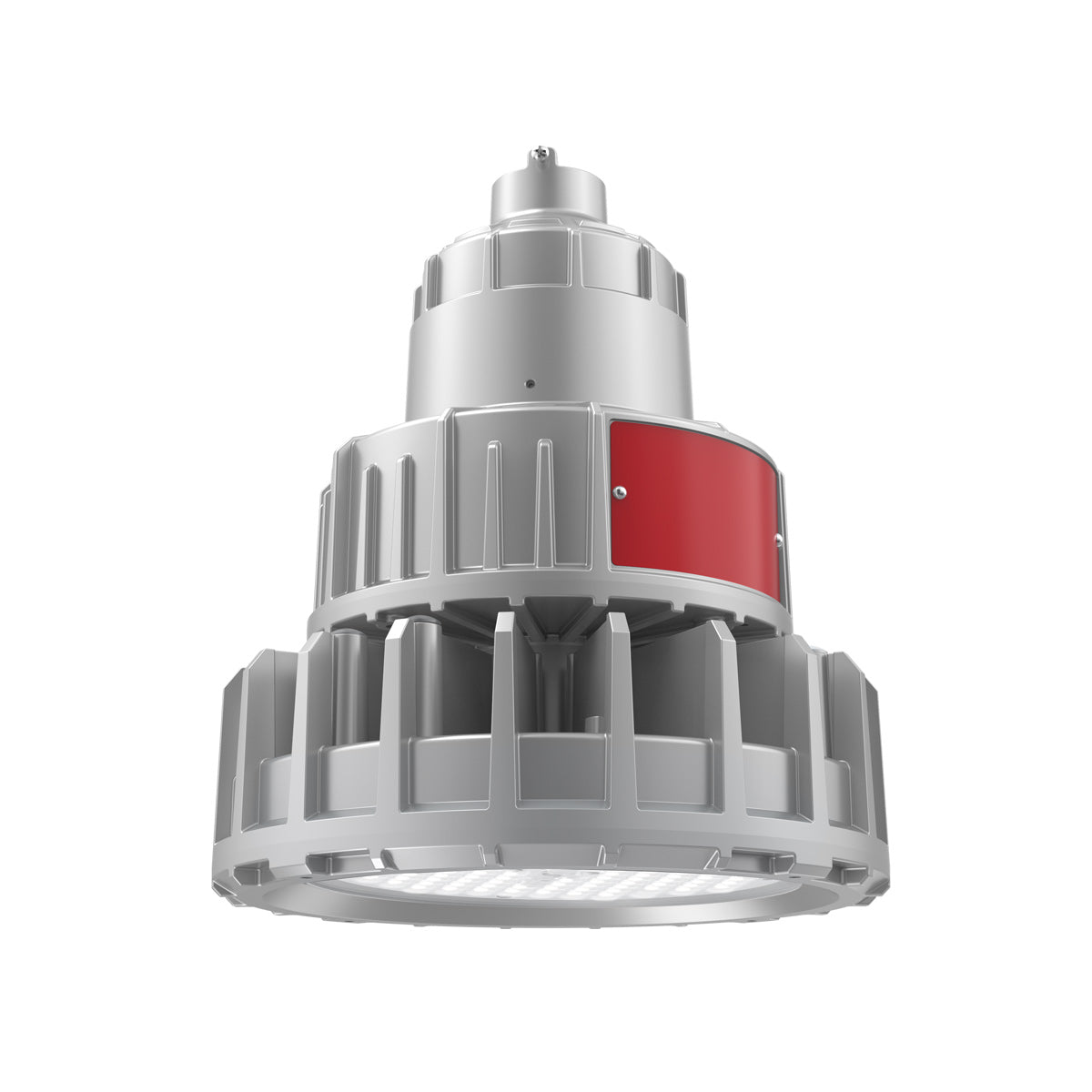

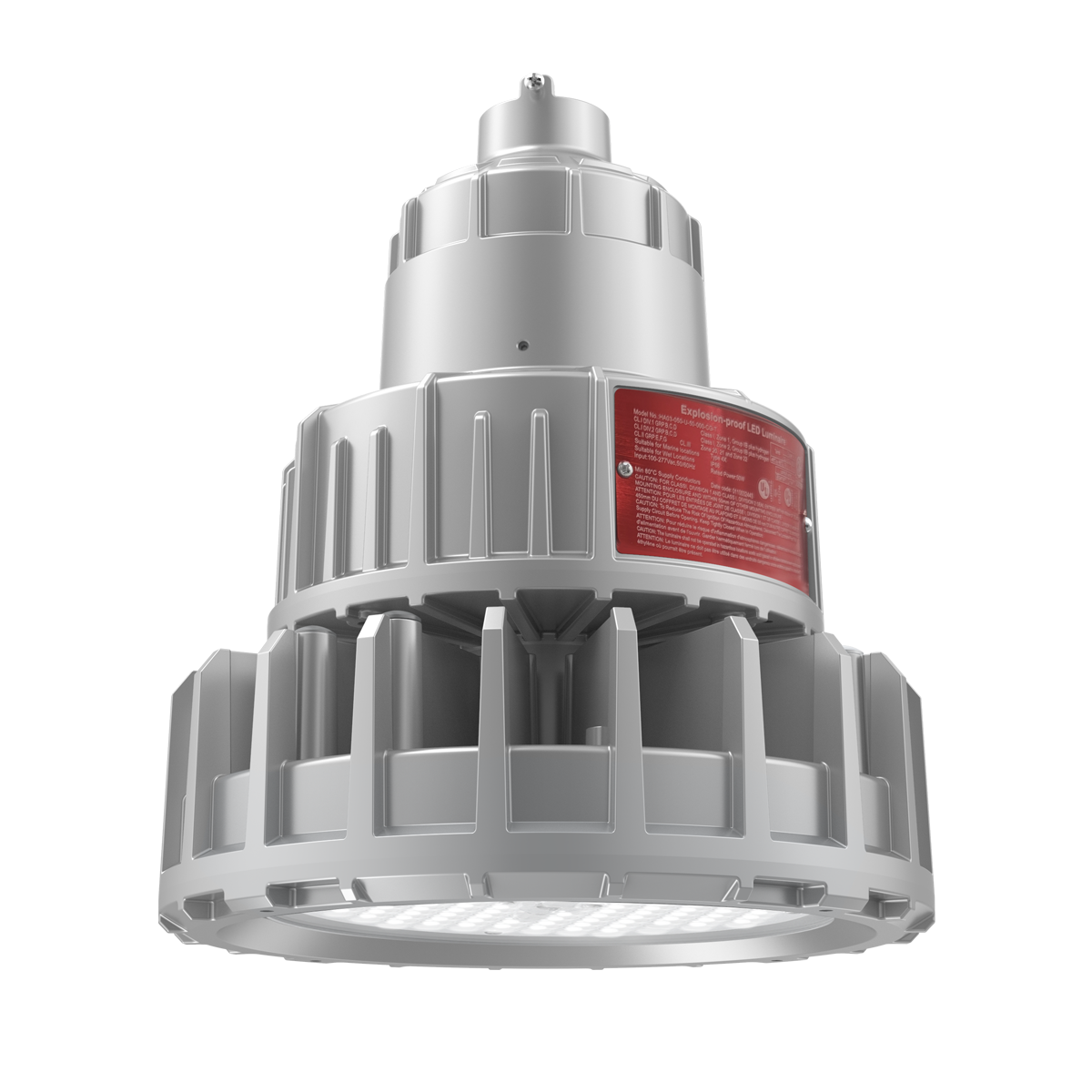

HRHB01 Series Hazardous Location LED Luminaire

HRHB01 Series Hazardous Location LED Luminaire

With its unmatched safety features, durability, and high-efficiency performance, this hazloc LED luminaire is the ultimate lighting solution for hazardous environments with ceiling or pole heights up to 15 ft.

  • 4,200 to 9,800 lumens
  • 5000K CCT
  • IP66 & IK10 rated
  • Corrosion-resistant marine-grade build
UL Listed CSA 100-277V IP-66 Rated Enclosure IK-10 Impact Rating
View full details

DETAILS

Hazardous Location LED Luminaire: Built for Safety, Durability, and Performance

Do you require a reliable and durable lighting solution for environments with explosive gases or combustible dust hazards? Our HRHB01 Hazloc LED low bay light fixture is designed to meet the highest safety and performance standards, making it the ideal choice for hazardous locations.

Powerful and Efficient Lighting Performance

Available in 30W to 70W options, this luminaire delivers a luminous output ranging from 4,200 to 9,800 lumens, with an impressive efficacy of 140 lm/W. Its 120-degree beam angle ensures wide, even coverage, while its operating temperature range of -40°F to 140°F makes it suitable for extreme climates.

Versatile Mounting Options

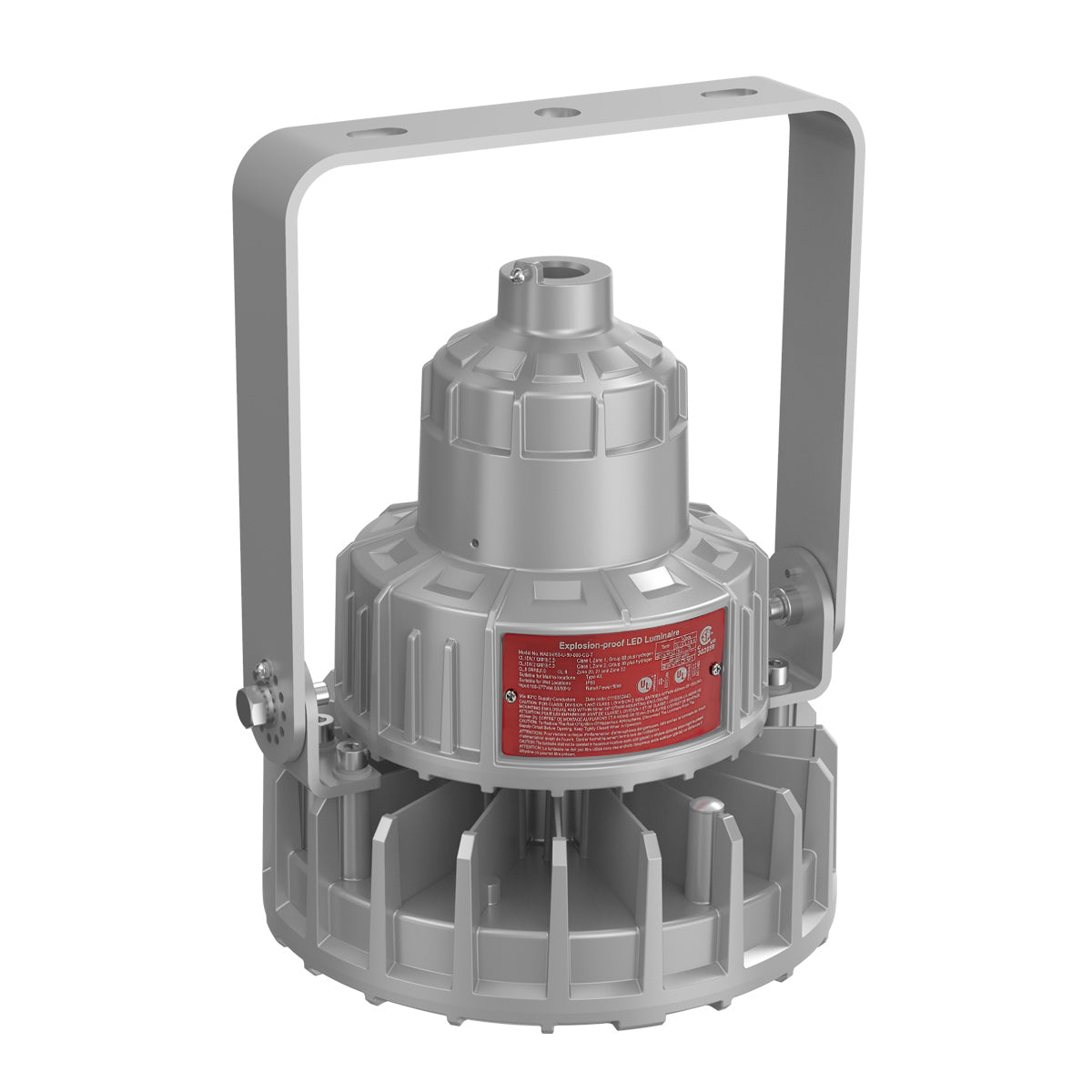

This hazardous location LED light can be trunnion-mounted or pendant-mounted on 3/4" NPT conduit, offering flexible installation options to suit your specific needs.

Engineered for Harsh and Hazardous Environments

This high-quality luminaire is waterproof, dustproof, corrosion-resistant, and impact-resistant, ensuring reliable operation in the toughest conditions. It’s built to withstand marine environments for over 10 years and is certified for use in Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas.

Applications

Designed for chemical, oil, gas, petrochemical, pulp, paper, foundry, manufacturing, waste, sewage treatment, power generation, paint spray, marine, and other harsh environments, this luminaire is the perfect solution for industries requiring robust and safe lighting.

DOWNLOADS

*IES file links on this page may not contain an IES file for every available configuration of the model.

Quick Ship Models

KEY SPECIFICATIONS

Wattage & Lumens 30W, 4,200 lumens
40W, 5,600 lumens
50W, 7,000 lumens
60W, 8,400 lumens
70W, 9,800 lumens
System Efficacy 140 lm/W
CRI 70 (80 and 90 available by special order)
CCT 5000K (2000K – 6500K, Red, Green, Blue, Amber available by special order)
Beam Angle 120°
Input Voltage 100-277VAC
Surge Protection 4kV line-line, 6kV line-earth (30W-50W)
6kV line-line, 10kV line-earth (60W-70W)
Warranty 5 Years
Certifications UL, CSA
