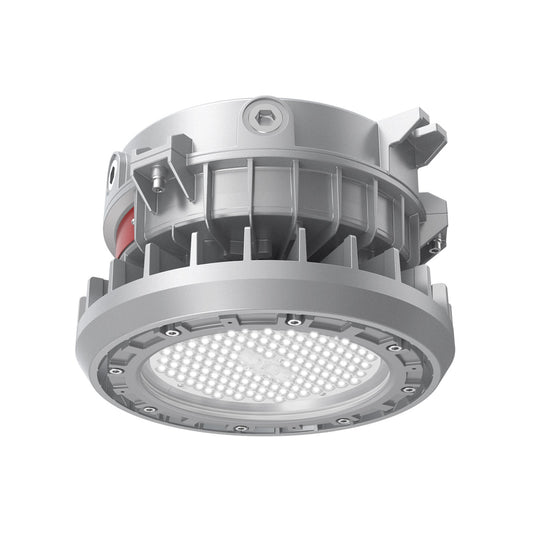

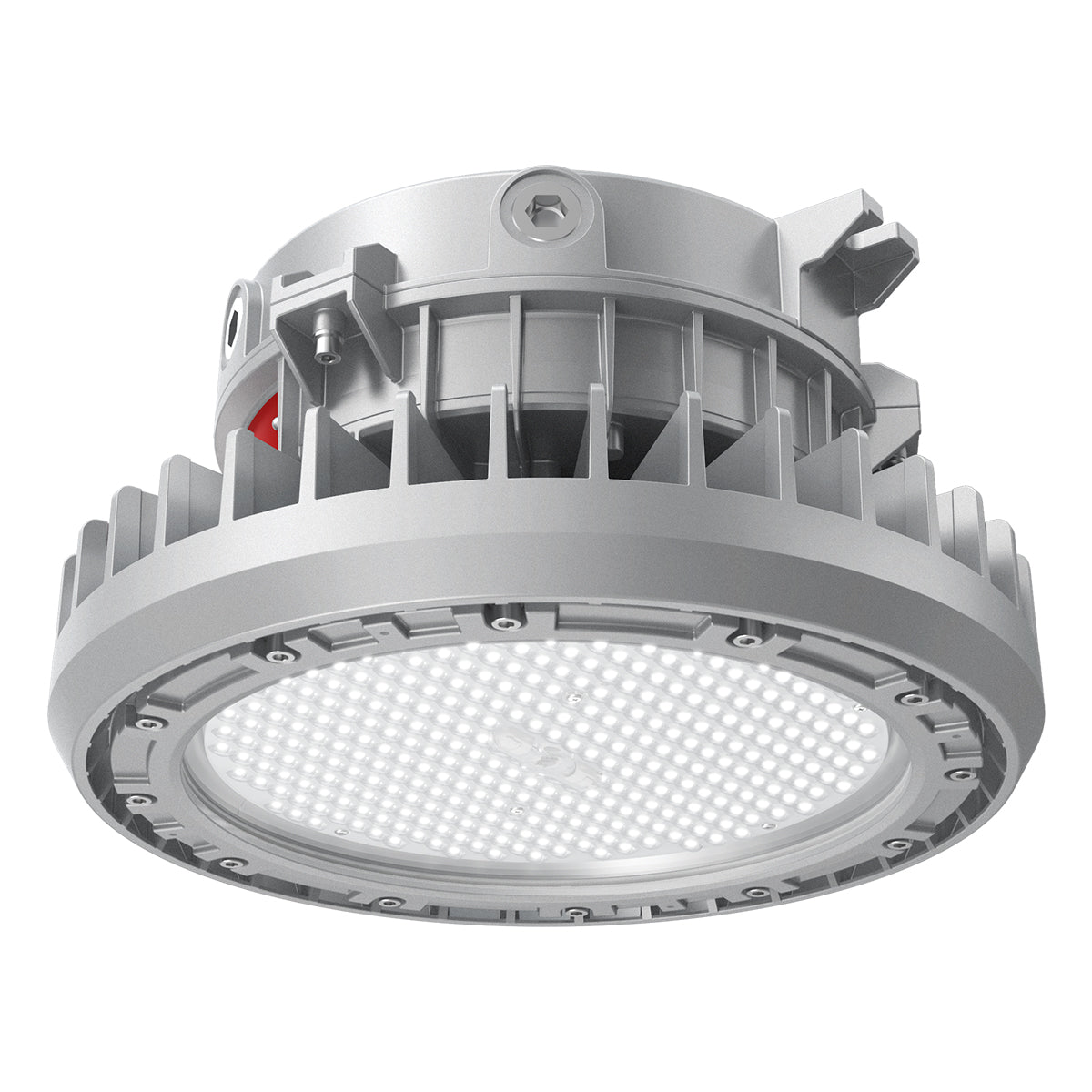

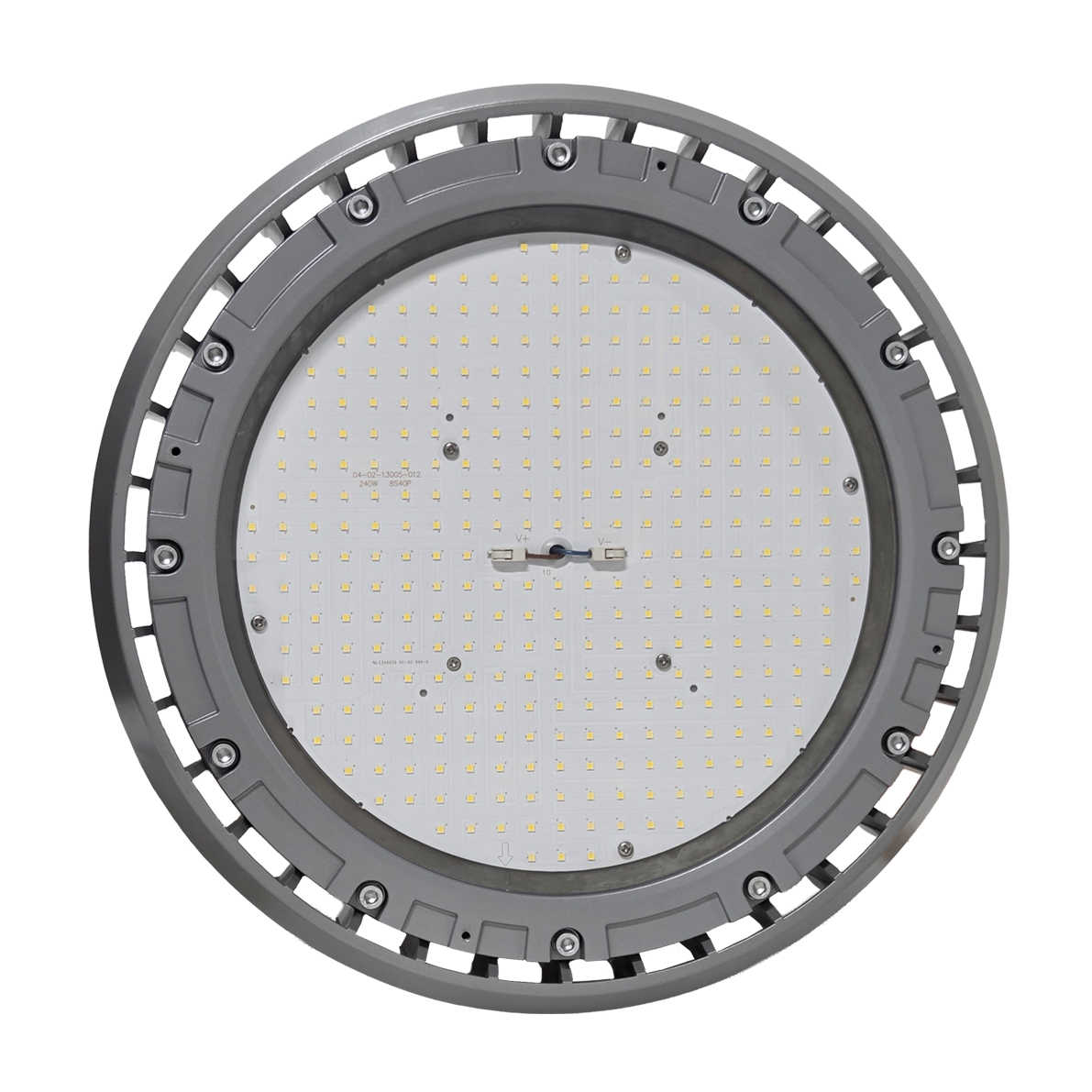

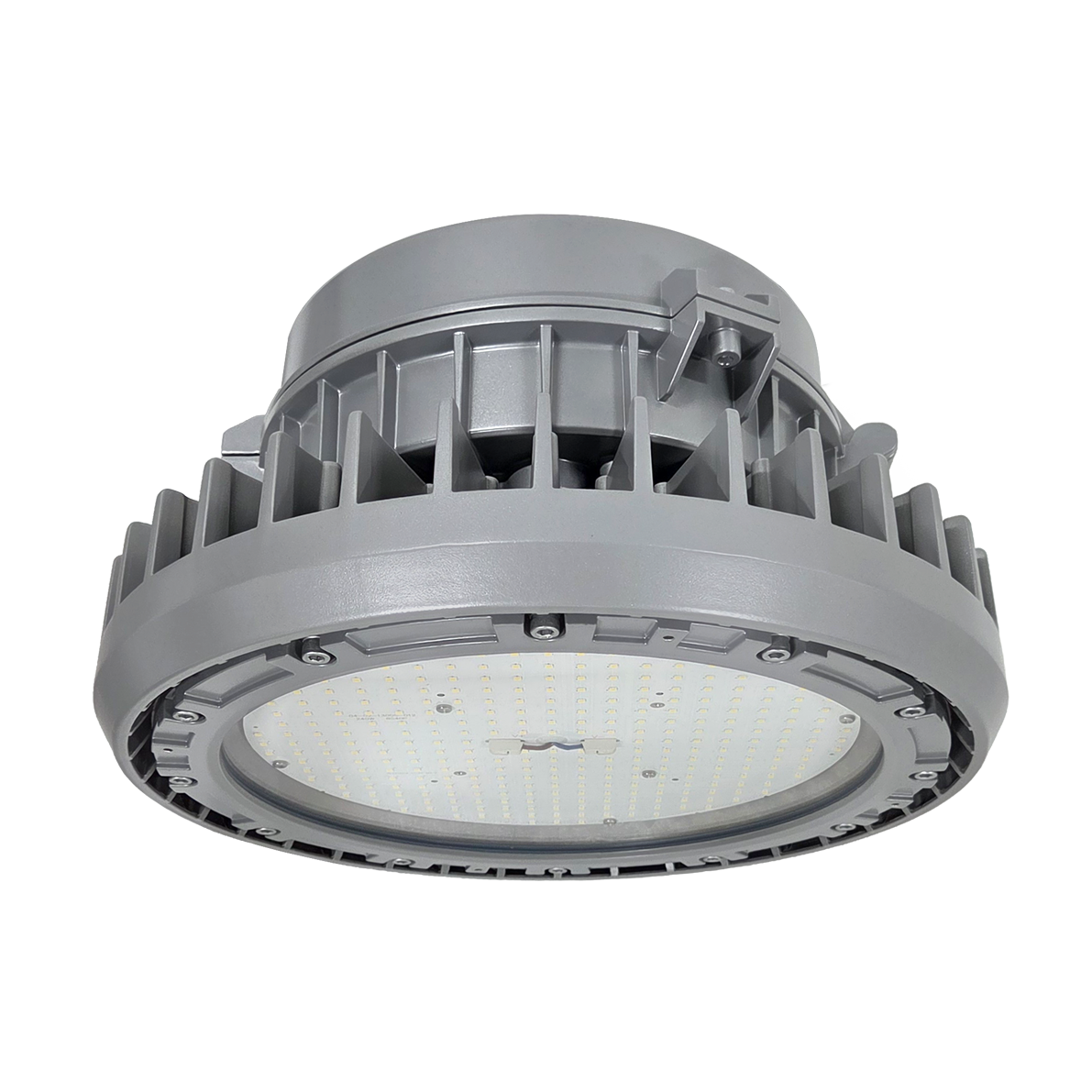

HRHB02 Series Hazardous Location LED Luminaire

HRHB02 Series Hazardous Location LED Luminaire

With separated LED modules and drivers for optimal heat management, this luminaire ensures extended operating life and superior performance. It’s a cost-effective alternative to HID lamps (100W-750W), running at less than half the cost while delivering bright, reliable light.

  • 4,200 to 33,600  lumens
  • 5000K CCT
  • IP66 & IK08 rated
  • Corrosion-resistant marine-grade build
UL Listed CSA 100-277V IP-66 Rated Enclosure IK-08 Impact Rating
View full details

DETAILS

Durable, Customizable, and Cost-Effective Light for Hazardous Environments

Designed for extreme conditions, this LED luminaire combines rugged construction, energy efficiency, and customizable features to deliver reliable performance in the harshest and most hazardous environments.

Efficient and Long-Lasting Performance

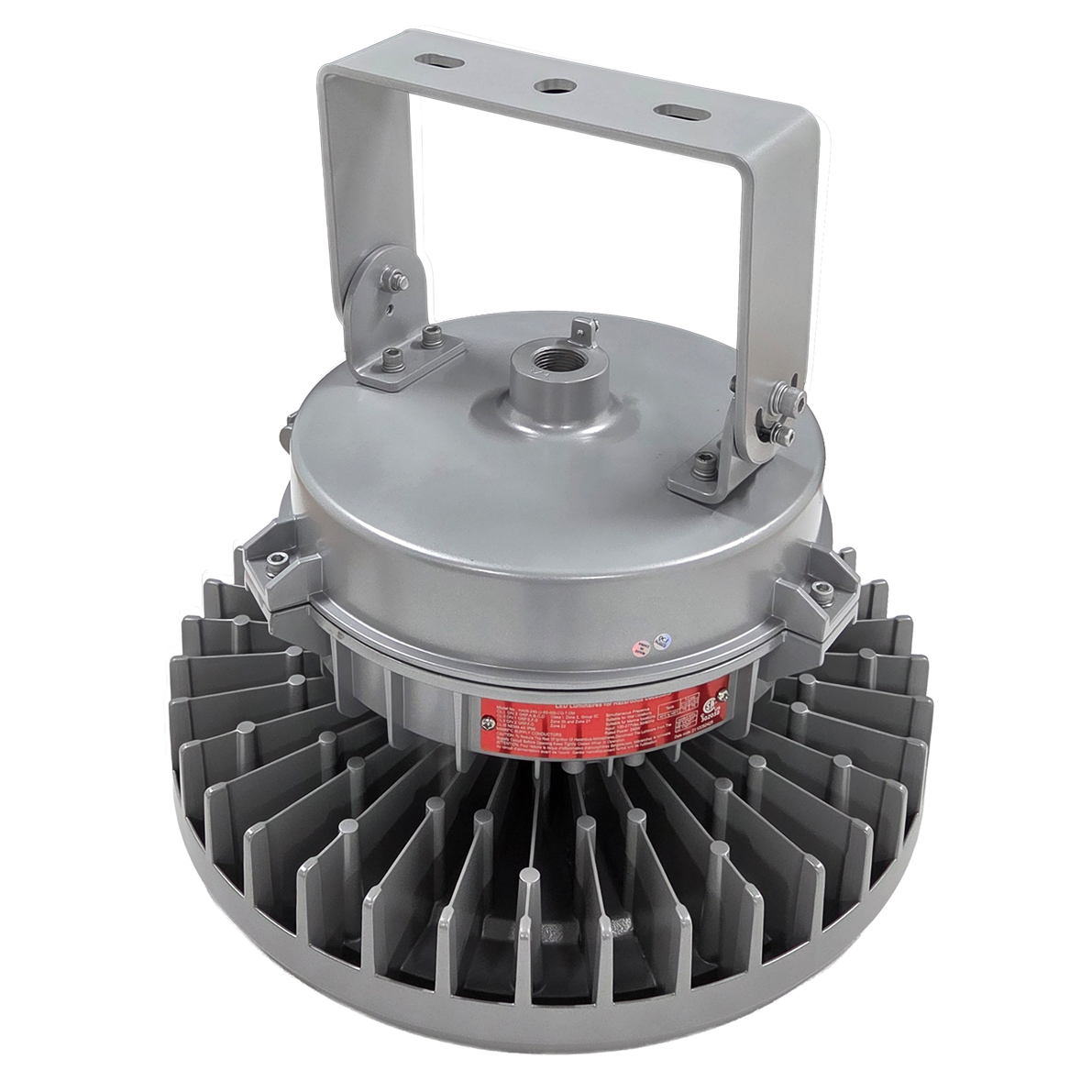

With separated LED modules and drivers for optimal heat management, this luminaire ensures extended operating life and superior performance. For easy installation, this luminaire features self-locking spring terminals and can be trunnion-mounted or pendant-mounted on 3/4" NPT conduit. Optional emergency drivers for the 50W model ensure code compliance and safety during power outages.

Built to Withstand the Toughest Conditions

Featuring a waterproof, dustproof, corrosion-resistant, and anti-vibration design, this luminaire is built to last. Its completely sealed housing protects against dust and water jets, while the IK08 impact rating ensures durability. The low-copper aluminum alloy housing, durable powder coating, and anti-corrosion-treated stainless-steel brackets make it ideal for marine environments, with a lifespan of 10+ years.

Customizable to Meet Your Needs

We offer extensive customization options, including color temperatures from 2000K to 6500K, colored light options (red, blue, green, amber), and CRI options of 70 (standard), 80, or 90 (special order). The standard 120-degree beam angle can be customized to Type I, Type III, or Type V light distribution patterns. Additional mounting options (ceiling, stanchion, wall) and voltage customization (277-480VAC) are also available.

Applications

This luminaire meets stringent standards for use in Class I, Division 2 (Groups A, B, C, D); Class II, Division 1 (Groups E, F, G); Class II, Division 2 (Groups F, G); Class III; and wet locations. It’s also suitable for marine environments, making it a versatile solution for industries like oil and gas, chemical processing, and wastewater treatment.

DOWNLOADS

Download Spec Sheet Spec Sheet - HRHB02 Hazardous Location Luminaires

Download Install Guide Installation Manual - HRHB02 Hazardous Location Luminaires

*IES file links on this page may not contain an IES file for every available configuration of the model.

Quick Ship Models

Contact us for lead time and pricing on non-quick-ship models.

KEY SPECIFICATIONS

Wattage & Lumens 30W, 4,200 lumens
50W, 7,000 lumens
75W, 10,500 lumens
100W, 14,000 lumens
120W, 16,800 lumens
150W, 21,000 lumens
180W, 25,200 lumens
200W, 28,000 lumens
240W, 33,600 lumens
System Efficacy 140 lm/W
CRI 70 (80 and 90 available by special order)
CCT 5000K (2000K – 6500K, Red, Green, Blue, Amber available by special order)
Beam Angle 120° (Type I, Type III, Type V available by special order)
Input Voltage 100-277VAC, 50/60Hz (277-480VAC available by special order)
Surge Protection 10kV line-line, 10kV line-earth)
Warranty 5 Years
Certifications UL, CSA
