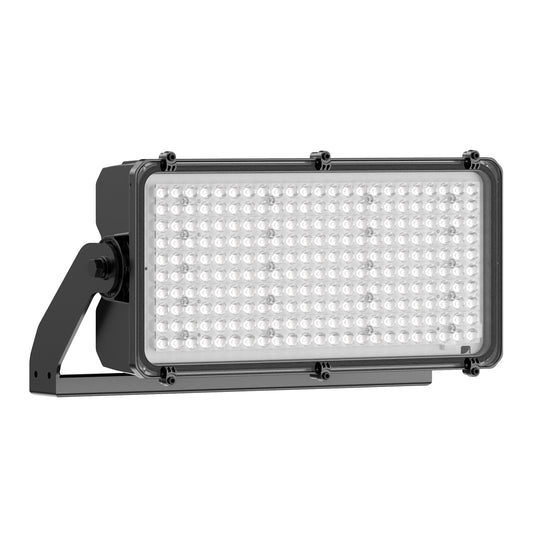

HS01 Selectable LED High Mast Light

HS01 Selectable LED High Mast Light

Powerful, uniform illumination for large open spaces with a high luminous efficacy that provides significant cost savings over the light's long life.

  • Standard models output from 58,180 to 174,540 lumens
  • Custom orders can be built to provide up to 193,512 lumens
  • Minimal glare and shadows ensure safety and visibility
  • Saves thousands/year compared to HID lighting
  • Remote driver can be installed up to 200 meters away
DLC Listed ETL Listed Wattage Selectable 277-480V 0-10V Dimming IP-66 Rated Enclosure IK-10 Impact Rating
View full details

DETAILS

Small Energy Footprint with a Long Operating Life

The HS01 Series of selectable LED high mast lights provides excellent illumination for expansive outdoor areas at a very low operating and maintenance cost.

Flexible Setup

The angle of each HS01 can be set ±90° during installation. Our aiming device (optional, shown attached to light above) eliminates the guesswork.

Precision Optics

HS01 lights in our Quick Ship program come standard with asymmetrical forward-throw (Type IV) optics. Additional photometrics, both asymmetrical and symmetrical are available—refer to the HS01 data sheet.

Control for Light Spill

In addition to the forward-throw optics, which reduce back light intrusion, visors (shown above) can be added to prevent up light and spill light pollution.

Saves Thousands

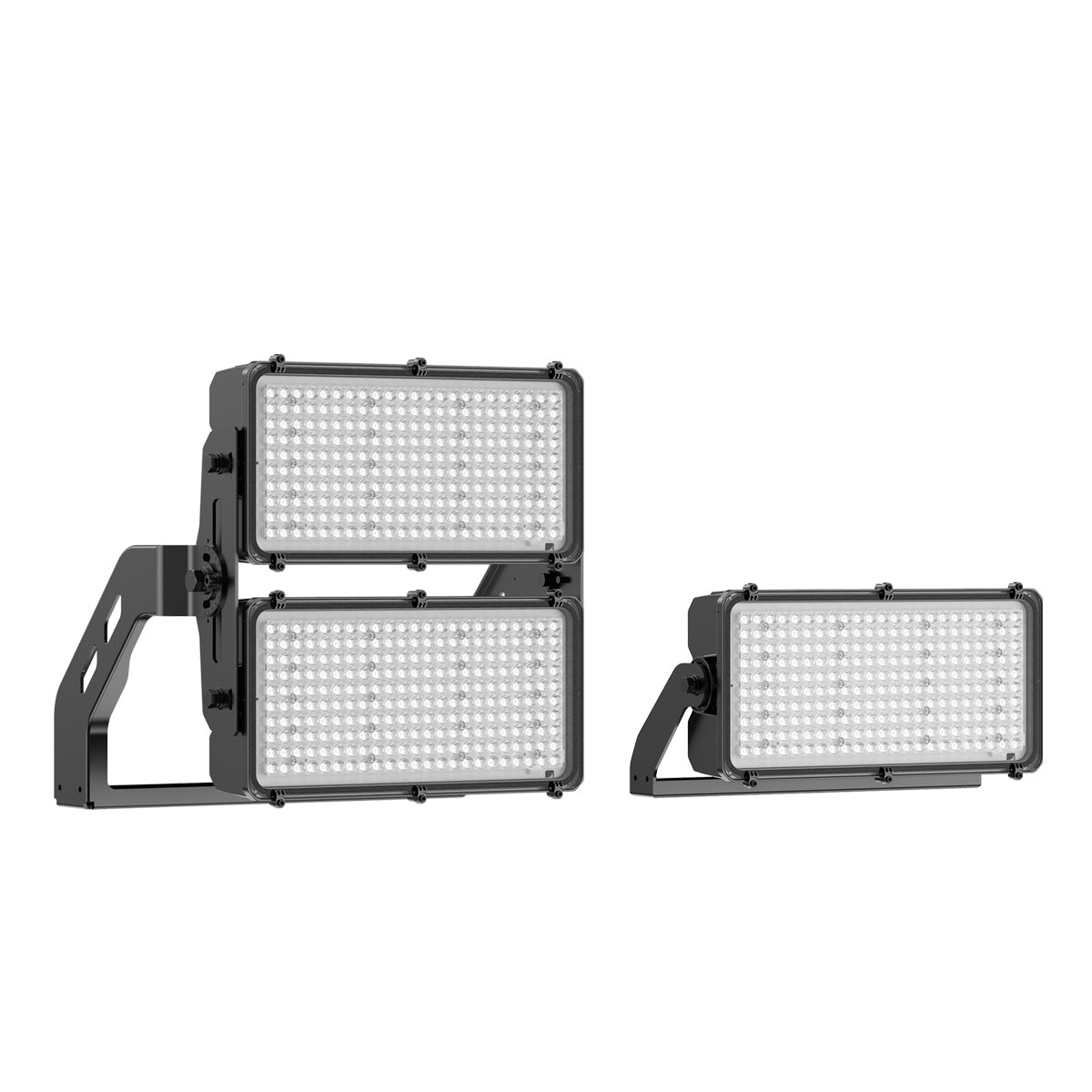

The single-module HS01 outputs light equivalent to 750W/1000W/1200W HID. The two-module model replaces up to 2000W HIDs. An installation of either can save thousands to tens of thousands of dollars in electricity every year compared to HID. The significantly longer operating life of these LED lights also saves considerably in maintenance costs with much fewer bucket truck rentals needed over the life of the lights.

Built to Endure

Featuring a durable, low-copper aluminum alloy housing, anti-corrosion mounting brackets, a fin design that minimizes wind resistance, and glass-over-polycarbonate lensing, the HS01 is built to withstand weather challenges.

Applications

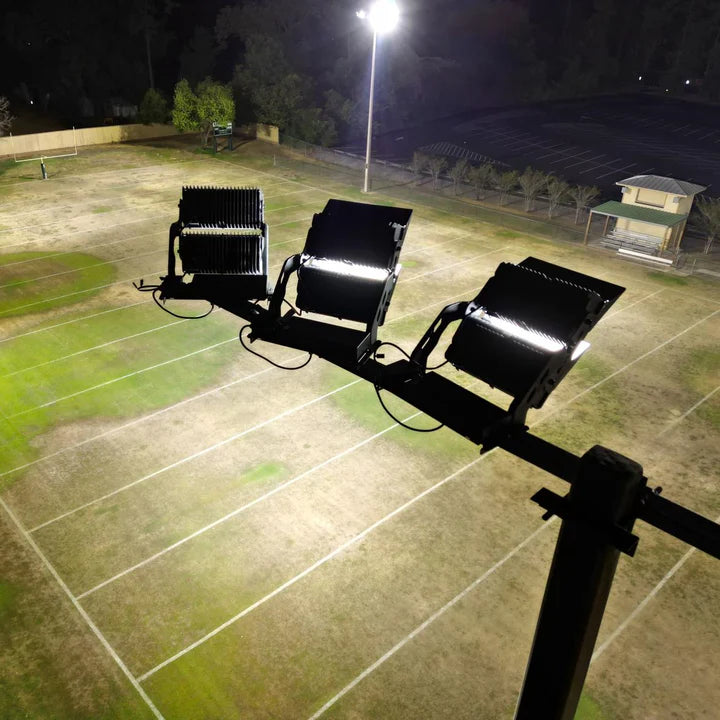

The HS01 high mast LED light is used for large open spaces, such as highways, shipyards, railroad yards, airports, truck stops and rest areas, large parking lots, sports fields, stadiums, and racetracks.

DOWNLOADS

Download Spec Sheet HS01 Series High Mast Light Light Datasheet

Download Spec Sheet HS01 Series Installation Guide

*IES file links on this page may not contain an IES file for every available configuration of the model.

Quick-Ship HS01 Models

These lights are in our Quick Ship Program. For additional configurations, refer to the HS01 Series High Mast Light datasheet.

KEY SPECIFICATIONS

Wattage & Lumens 600W Selectable (600/480/400W): 87,270/69,816/58,180 lumens standard - see datasheet for additional options
1200W Selectable (1200/960/800W): 174,540/139,632/116,360 lumens standard - see datasheet for additional options
System Efficacy Up to 161 lm/W
CRI 70 (90 optional*)
CCT 5700K (4000K optional*)
Light Distribution Pattern LED 3737: Type IV (Standard), Type III, 10°, 23°
LED 5050*: Type III, 30°, 45°, 60°
Enclosure Rating IP66, IK08
Operating Temperature -30°C to + 50°C (-22°F to 122°F)
Input Voltage 277-480VAC, 50/60Hz (120-277VAC optional*)
Housing Aluminum Alloy with a Polycarbonate Optical Lens and 4mm Tempered Glass
Finish Black
Warranty 5 Years
Certifications DLC, ETL
DLC Listing Primary Use Category Outdoor Pole/Arm-Mounted Area and Roadway Luminaires
* Non-stock item. Call for availability

Accessories

Visors are available to prevent spill light. Ask about our luminaire aiming device for precision setup of your high mast lights.
