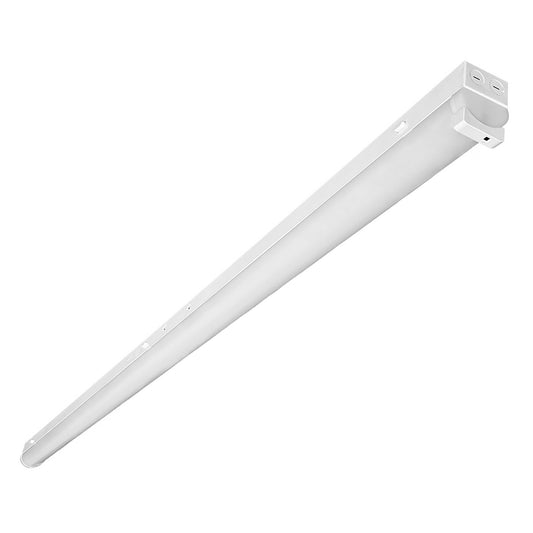

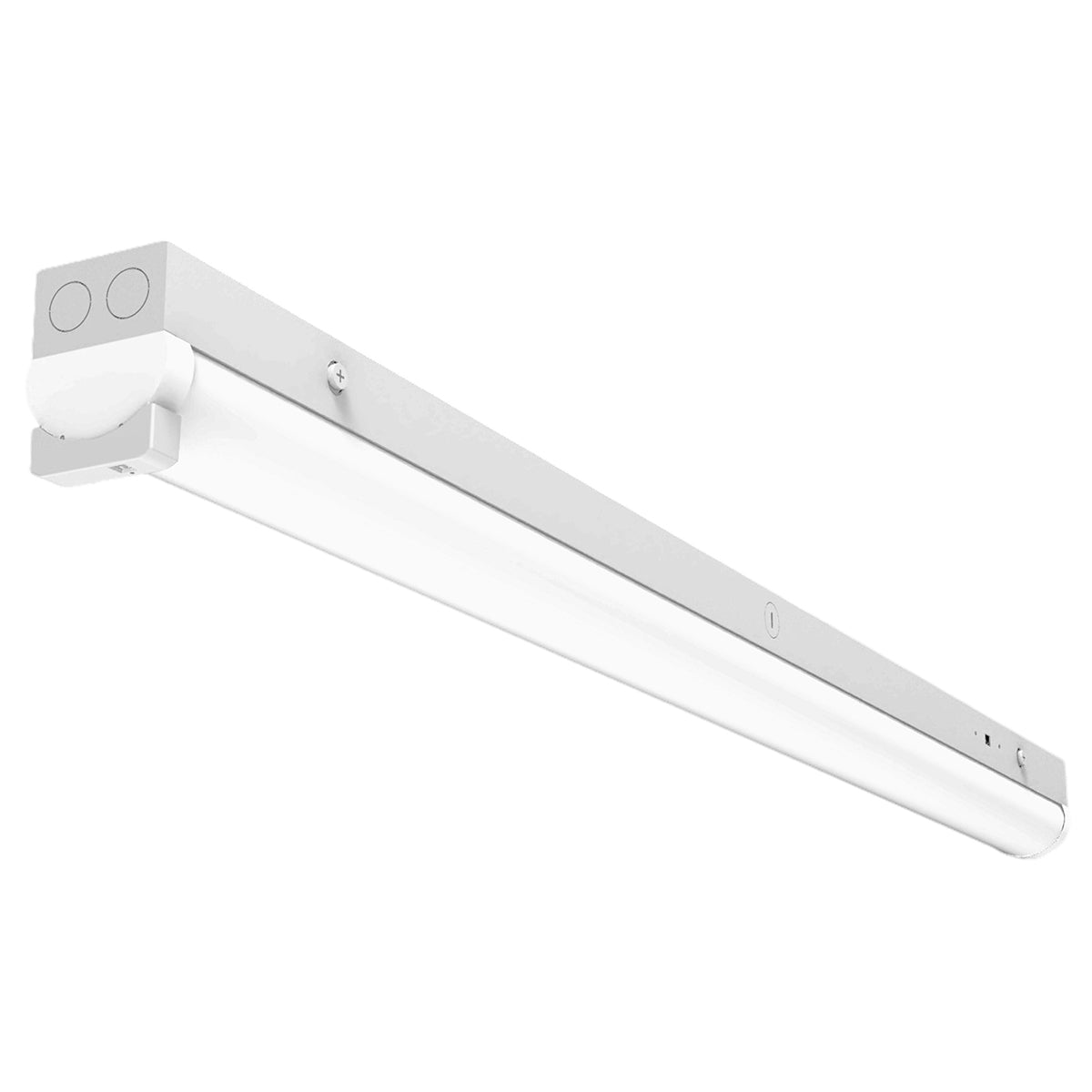

L06 Series Linear LED Strip Light

L06 Series Linear LED Strip Light

Upgrade commercial and industrial spaces with high-performance, linkable linear lighting. The L06 Series features adjustable wattage and color temperature and the ability to create long rows of continuous light.

  • Selectable Wattage from 24W to 90W
  • Selectable CCT 3500K/4000K/5000K
  • Linkable for Continuous Row Installation
  • Emergency Driver & Motion Sensor Available
  • 5-Year Warranty
DLC Listed DLC Premium ETL Listed Wattage Selectable CCT Selectable CRI 80 0-10V Dimming
View full details

DETAILS

Seamless, High-Output Lighting

Designed for warehouses, offices, retail stores, and hospitality spaces, the L06 Series delivers consistent, energy-efficient illumination tailored to each environment.

Continuous Row Installation

The linkable design and transparent end caps allow for smooth, shadow-free illumination, making it ideal for long commercial runs where uninterrupted lighting is essential.

Easy Installation & Customizable Performance

Suspension mounting and quick-access housing streamline the setup process, while selectable wattages and color temperatures ensure the right balance of brightness and efficiency for any application.

Motion-Sensing + Emergency Lighting Options

The available motion sensor accessory adds energy-saving performance, and the optional emergency backup driver ensures the lights will stay on in case of a power outage.

Applications

Perfect for offices, retail stores, schools, restaurants, healthcare facilities, warehouses, and hospitality settings.

Quick-Ship L06 Linear Strip Lights

DOWNLOADS

Download Spec Sheet L06 Linear Strip Datasheet

KEY SPECIFICATIONS

Lumens Packages 4' 40W Selectable (24/32/40W), 3,120/4,160/5,200 lumens
8' 90W Selectable (64/75/90W), 8,320/9,750/11,700 lumens
System Efficacy 130 lm/W
CRI 80
Dimming Capability 0-10V
CCT 3500K/4000K/5000K Selectable
Input Voltage 120-277VAC
Warranty 5 Years
Certifications DLC, ETL

*IES file links on this page may not contain an IES file for every available configuration of the model.
