LHB Series Heavy Duty Linear LED High Bay

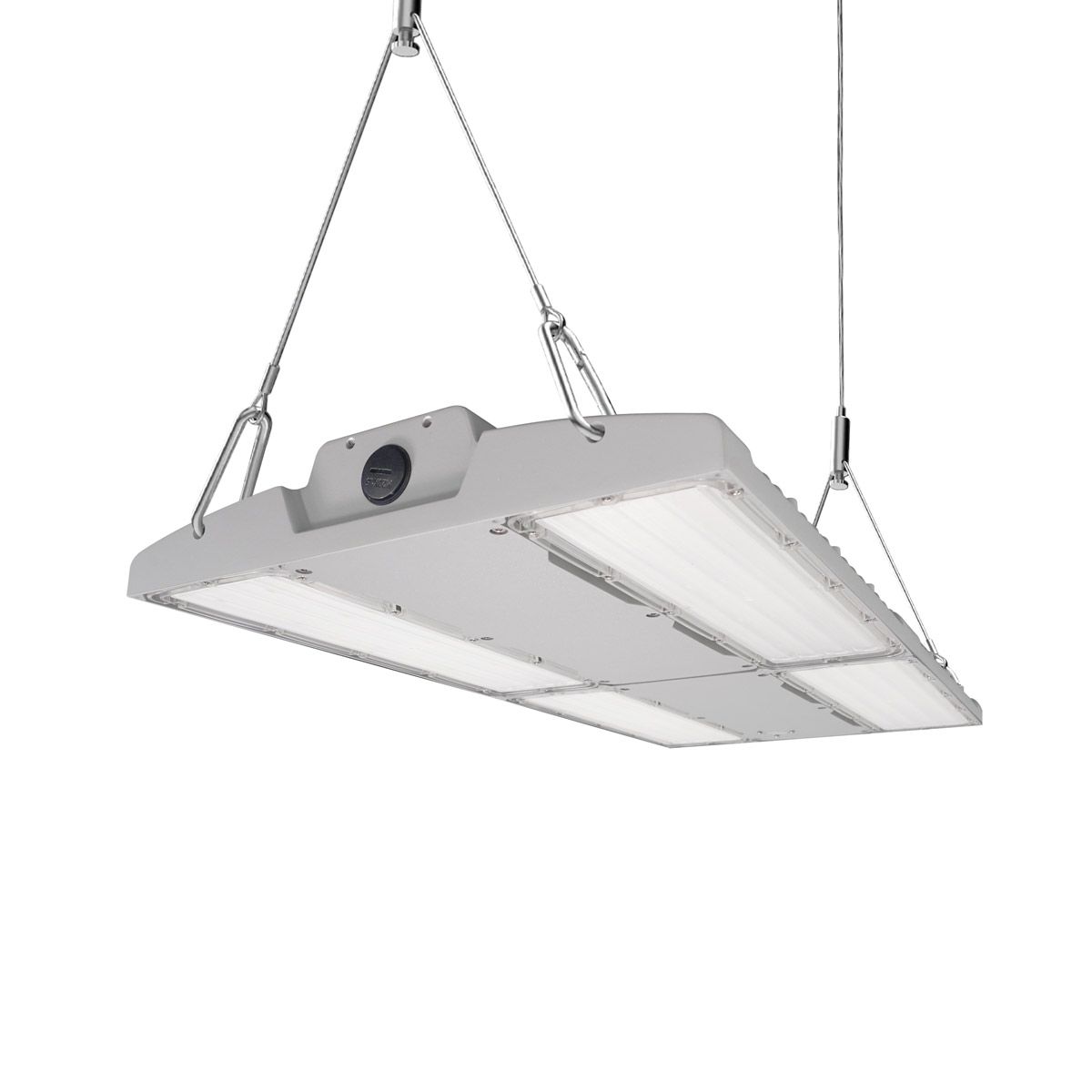

LHB-200 LED Linear High Bay

LHB-200 LED Linear High Bay

Linear LED High Bay available in five different beam angles to meet every application's needs. IP66 & IK10 housing ensure durability even in the toughest industrial and athletic environments.

  • 30,000 lumens
  • 200W
  • 4000K or 5000K CCT

CONFIGURE & REQUEST QUOTE

Select your options & add ons, then click Add to Quote. You can add multiple products or configurations before submitting your quote request.

CCT
Beam Angle
Voltage

Quick Ship | SKU:

Return to main product:
LHB Series Heavy Duty Linear LED High Bay View full details

DOWNLOADS

Download Spec Sheet LHB Series Data Sheet

DLC SPECIFICATIONS

LLTVLHB-200-50-LW
DLC Specifications

Configuration
5000K
80˚ x 100˚ (Aisle wide beam)
120-277V
DLC Classification
Premium
DLC Lumens
30000 lm
DLC Wattage
200.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB-200-50-LW-480
DLC Specifications

Configuration
5000K
80˚ x 100˚ (Aisle wide beam)
277-480V
DLC Classification
Premium
DLC Lumens
30000 lm
DLC Wattage
200.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
No
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

ACCESSORIES

Mounting options: Use a safety line for hanging installation, or install an optional fixed ceiling bracket or a ±60° adjustable bracket for ceiling mounting.

Sensors: Dimming capability is included. Add more controls with a microwave or PIR motion sensor and/or a daylight sensor with daylight harvesting function. Motion sensors are IP65 rated, daylight sensor is IP20 rated. A remote controller is available for programming.

Return to main product: LHB Series Heavy Duty Linear LED High Bay
