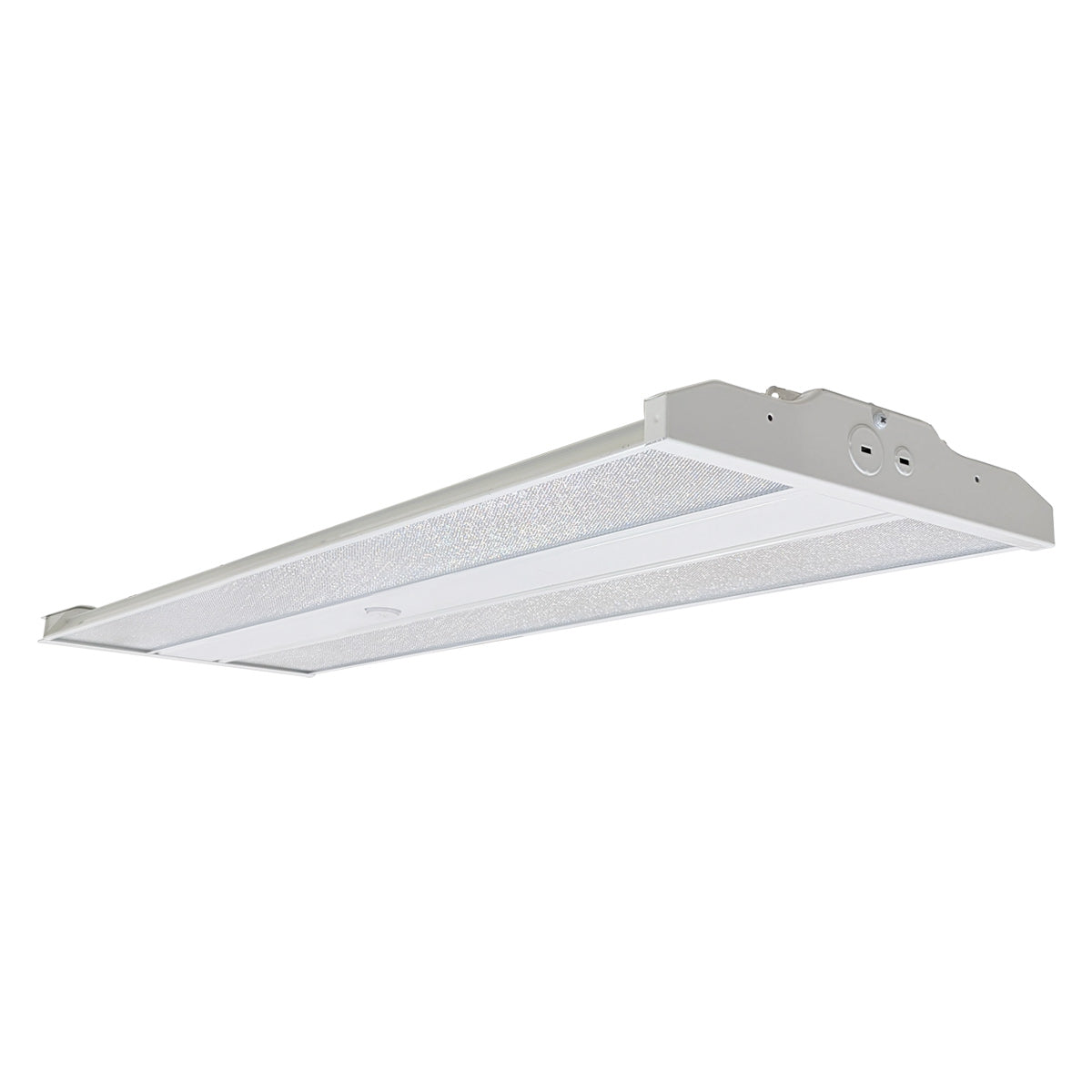

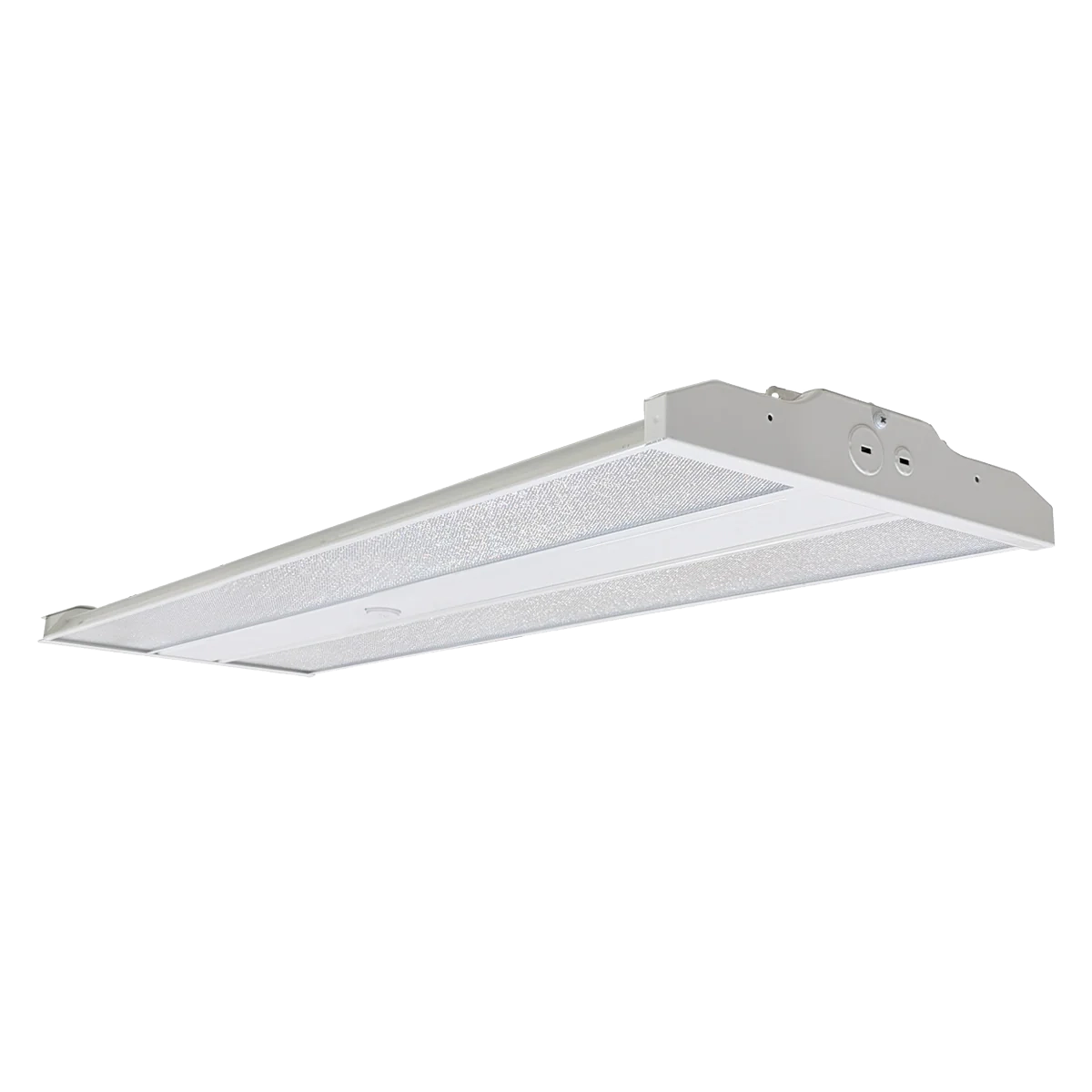

LHB04 Series Linear LED High Bay

LHB04 Series Linear LED High Bay

Cost-effective, customizable linear high bay lighting for ceilings from 20 ft to 40 ft.

  • Beam angles for open areas or aisles
  • Three wattage settings on each model
  • 4000K/5000K CCT selectable
  • UL damp location listed
  • 5-year warranty



DLC Premium UL Listed Wattage Selectable CCT Selectable CRI 80 120-277V 277-480V 0-10V Dimming
View full details

DETAILS

Practical Lighting for High Ceilings in Warehouses and Other Commercial Buildings

Versatile, dependable lighting for 20 to 40 ft ceilings that's easy to install, lasts for years, and pays for itself with low energy costs. LHB04 Series lights are the perfect, low-maintenance alternative to high-output fluorescent light fixtures.

High Efficacy for Low Energy Costs

The LHB04 linear high bays run at 150 lm/W to provide brilliant lighting at a fraction of the operating cost of fluorescent and metal halide equivalents. They're also much lower maintenance, with an average L70 lifetime of 100,000 hours. For even more control over energy costs, purchase your fixtures with PIR daylight harvesting sensors.

Customizable on Site

Each model features 3 wattage settings, allowing you to set the best balance of brightness and energy cost for each fixture during installation. Color temperature selection is also built in: set your fixtures to a neutral 4000K or a cooler 5000K, depending on the needs of your space.

Versatile Mounting

LHB04 lights come standard with a V-hooks and chain suspension kit. For direct mounting to ceiling, a heavy-duty surface mount kit is available. Alternately, the lights can be pendant mounted on 3/4" NPT with the pendant hanger kit.

Easy-Swap Lenses to Suit Today's Needs—and Tomorrow's

These high bays come with standard 90˚ general distribution lighting pattern, but with our easy-swap lenses, the lights can be changed to asymmetrical (50˚ x 90˚) beam angle in no time. Even if all you need is general distribution today, the ability to change out the lenses later saves a good bit of money compared to having to purchase all new fixtures to accommodate changing use of space.

DOWNLOADS

Download Spec Sheet Spec Sheet - Series LHB04 Linear LED High Bays

Quick-Ship Models

KEY SPECIFICATIONS

Wattage & Lumens 200W Selectable (155/185/200W), 23,500 to 30,000 lumens
270W Selectable (200/230/270W), 30,000 to 40,500 lumens
System Efficacy 150 lm/W
CRI >80
CCT 4000K/5000K, selectable at install
Beam Angle 90° standard; convert to 50°x 90° with easy-swap lenses
Controls 0-10V Dimming
Integral Sensor Receptacle
Input Voltage 120-277VAC (120-347VAC and 277-480VAC available by special order)
Surge Protection 6kV line-line, 6kV line-earth
Warranty 5 Years
Certifications DLC Premium, UL
DLC Listing Primary Use Category High-Bay Luminaires for Commercial and Industrial Buildings

*IES file links on this page may not contain an IES file for every available configuration of the model.
