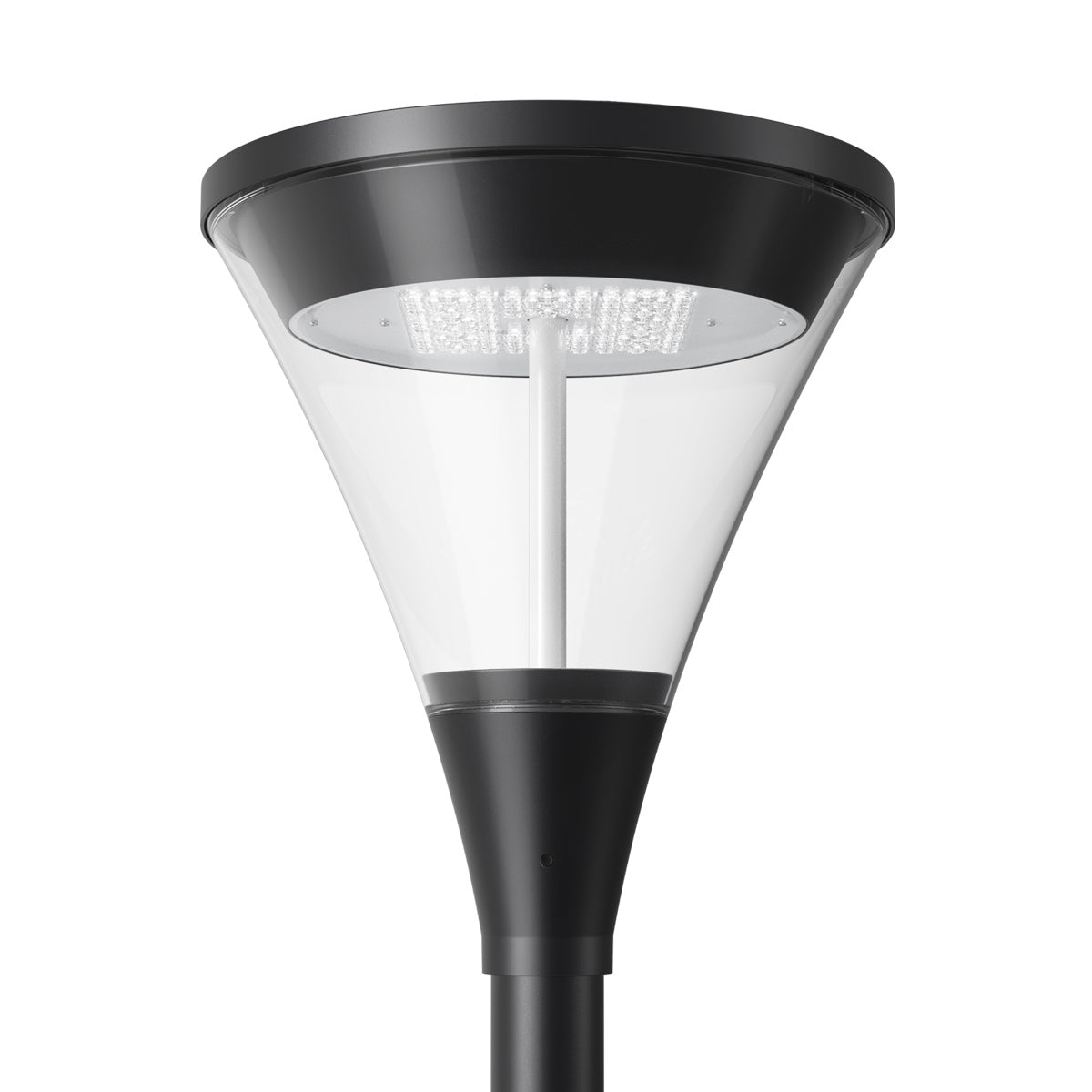

PT01 Series LED Post Top Luminaire

PT01 Series LED Post Top Luminaire

Create safe, secure outdoor spaces with a modern architectural look and modern energy-saving technology.

  • Adjustable wattage and color temperature
  • Type III and Type V light distribution patterns
  • Modern design eliminates shadows caused by traditional lamp arms
  • Up to 145 lm/W performance for low energy bills
  • 5-year warranty
DLC Premium ETL Listed 120-277V 0-10V Dimming IP-66 Rated Enclosure IK-09 Impact Rating
View full details

DETAILS

Modern Architectural Lighting with Built-In Versatility

Simplify ordering and give yourself the ability to adapt with these sleek wattage & color adjustable post-top lights

Match Your Application

With four wattage settings in each light, you're able to dial in the best lighting performance for your post height, right on site. Then, set the best ambiance for your application: warm white for gardens, residential areas, and upscale areas; neutral white for parks and campuses; cool white for streetscapes.

Built to Last While Looking Great

The PT01 is constructed from aluminum alloy with a polycarbonate layout for durable performance in a lightweight form factor. It's protected from both the elements and impact with IP66 and IK09 ratings.

Great Coverage

PT01 is available in two light distribution patterns: The elliptical, forward-throw Type III photometrics are great for lighting pathways, sidewalks, roadways, and perimeter lights. For open areas, intersections, and plazas, Type V square photometrics distributes light evenly in all directions.

Applications

Gardens, parks, public squares, pedestrian areas, and cycle paths.

DOWNLOADS

Download Spec Sheet Spec Sheet - PT01 LED Post Top Lights

Download Instruction Manual Installation Manual - PT01 LED Post Top Lights

*IES file links on this page may not contain an IES file for every available configuration of the model.

PT01 Post Top Lights

Our PT01 post top lights feature a modern look with modern technology that provides uniform lighting at a low energy cost.

KEY SPECIFICATIONS

Wattage & Lumens 20W Selectable (6/10/15/20W), 702 to 2,900 lumens
40W Selectable (12/20/30/40W), 1,344 to 5,320 lumens
60W Selectable (18/30/45/60W), 1,944 to 8,280 lumens
System Efficacy 108 to 145 lm/W
CRI >70 (80 available by special order)
CCT 3000K/4000K/5000K Selectable
Beam Angle Type III or Type V
Controls 0-10V dimming
(Optional photocell control; call for availability)
Input Voltage 120-277VAC
Surge Protection 4kV line-line, 6kV line-earth
Warranty 5 Years
Certifications DLC Premium, ETL
DLC Listing Primary Use Category Outdoor Pole/Arm-Mounted Decorative Luminaires
