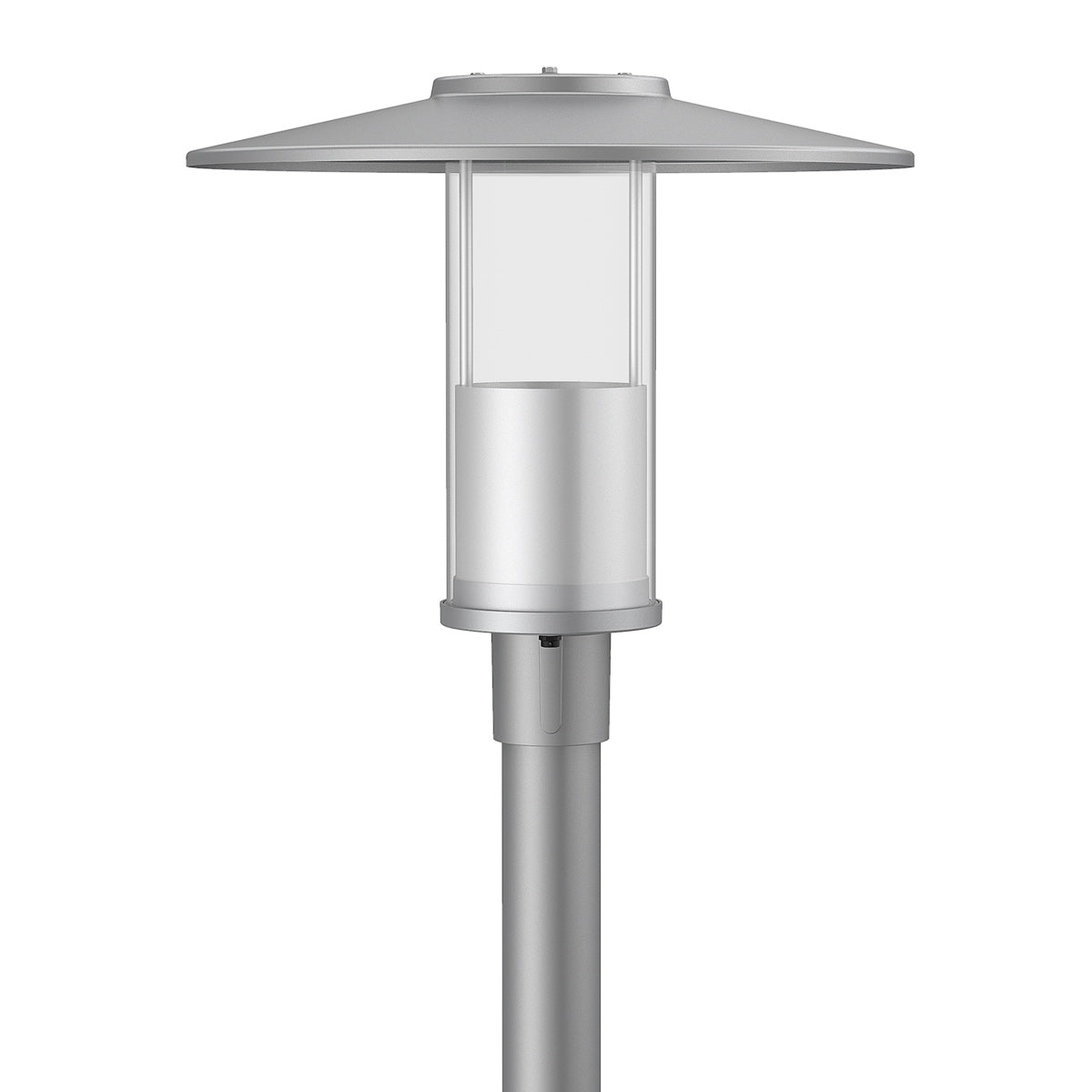

PT02 Series LED Post Top Luminaire

PT02 Series LED Post Top Luminaire

The PT02 post-top light is ideal for creating safe, welcoming, and well-lit environments while also supporting sustainability goals.

  • 1,080 to 4,200 lumens
  • 3000K/4000K/5000K selectable CCT
  • Dark sky friendly
  • Symmetrical 85˚ beam angle
  • Designed for ⌀ 2.46" (60 mm) poles up to 20 ft
  • 5 year warranty
ETL Listed 120-277V 0-10V Dimming IP-66 Rated Enclosure IK-08 Impact Rating
View full details

DETAILS

Create Appealing, Comfortable & Safe Environments

With wide, even light distribution and long operating life (148,000 hours (L70)), the PT02 is a smart and functional accent for urban, residential, and commercial applications.

Eye-Friendly & Sky-Friendly

Indirect lighting paired with PT02's large shade keeps pathways beautiful lit, without glare or visual discomfort. The shade has the additional function of blocking light pollution, for a dark sky friendly fixture.

Avoid Over Lighting & Save Energy

PT02 includes four selectable wattages, from 12W to 40W. The lower wattage options reduce electricity consumption, leading to lower operational costs. It also makes the light suitable for a wide range of applications, from low-light pathways to high-brightness parking lots.

Ambience to Go with the Aesthetics

Set the PT02's color temperature to match the lighting to the architectural style and purpose of any space: warm and inviting (3000K), neutral and professional (4000K), or bright and energetic (5000K).

Applications

Perfect for municipal and campus projects, this fixture is designed for outdoor spaces such as pathways, parks, and courtyards. Light up public parks, community gardens, college and medical campuses, courtyards, pathways, and more.

DOWNLOADS

Download Spec Sheet Spec Sheet - PT02 LED Post Top Lights

Download Install Guide Installation Manual - PT02 LED Post Top Lights

*IES file links on this page may not contain an IES file for every available configuration of the model.

PT02 Post Top Lights

Illuminate outdoor spaces with style and efficiency.

KEY SPECIFICATIONS

Wattage & Lumens 40W Selectable (12/20/30/40W), 1,080 to 4,200 lumens
System Efficacy 90 to 105 lm/W
CRI >70 (80 available by special order)
CCT 3000K/4000K/5000K Selectable
Beam Angle 85°
Controls 0-10V dimming
Input Voltage 120-277VAC
Surge Protection 6kV line-line, 10kV line-earth
Warranty 5 Years
Certifications ETL
