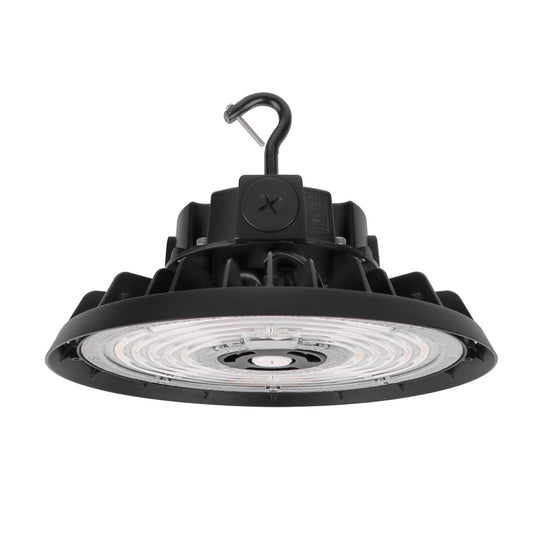

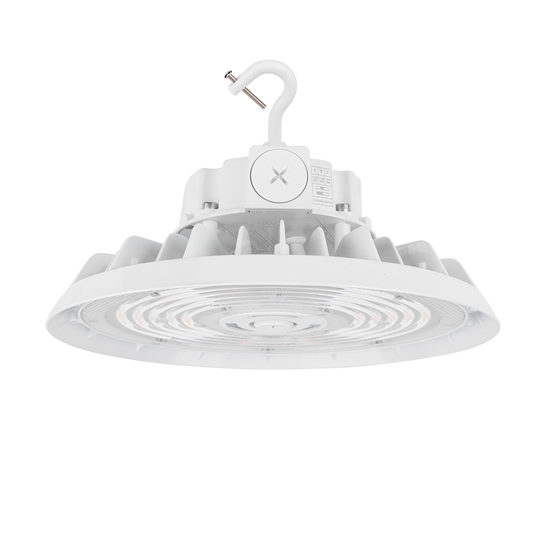

RHB10 Series Round LED High Bays

RHB10 Series Round LED High Bays

Brighten large commercial and industrial spaces with powerful, high-efficiency LED lighting. The RHB10 Series offers a wide range of selectable wattages and color temperatures to deliver optimal performance and flexibility for just about any ceiling height or use-case.

  • Selectable Wattage from 80W to 320W
  • Selectable CCT 4000K/5000K
  • High Efficacy: Up to 171 lm/W
  • 0-10V Dimming Compatibility
  • 5-Year Warranty
DLC Premium UL Listed Wattage Selectable CCT Selectable CRI 80 0-10V Dimming
View full details

DETAILS

Powerful, Versatile, and Energy-Efficient High Bays

Built for warehouses, gymnasiums, production areas, and other large indoor spaces, the RHB10 Series provides consistent high output while reducing energy consumption.

Customizable Output

With four wattage and lumen packages, ranging from 13,200 to 49,900 lumens, the RHB10 Series offers flexibility to meet the lighting needs of any high-ceiling space.

Reliable Performance & Long-Lasting Operation

UL & DLC certified to ensure performance you can count on, while the high-efficacy design ensures reliable operation over time that continuously keeps energy costs low.

Easy Installation and Dependable Safety

A 59" power cord and 12" dimming cable are included for quick setup. Equipped with 6kV surge protection and a durable G hook for secure mounting, these fixtures are designed to withstand demanding environments.

Applications

Use the RHB10 high bays in warehouses, gymnasiums, distribution centers, manufacturing facilities, large storage areas, and other tall-ceiling indoor environments requiring high lumen output.

*IES file links on this page may not contain an IES file for every available configuration of the model.

Quick Ship RHB10 LED High Bays

DOWNLOADS

Download Spec Sheet Spec Sheet - RHB10 LED UFO High Bay Light

KEY SPECIFICATIONS

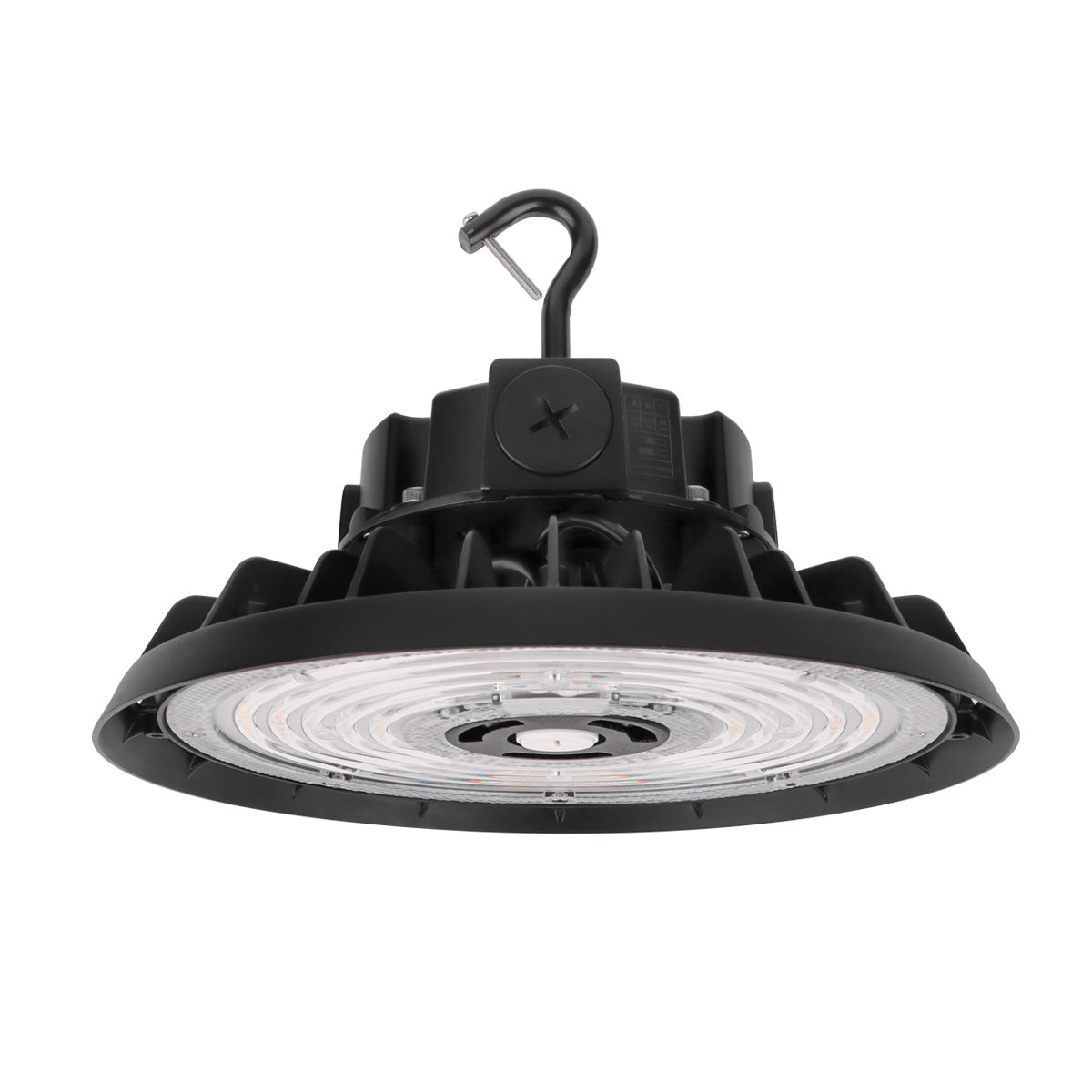

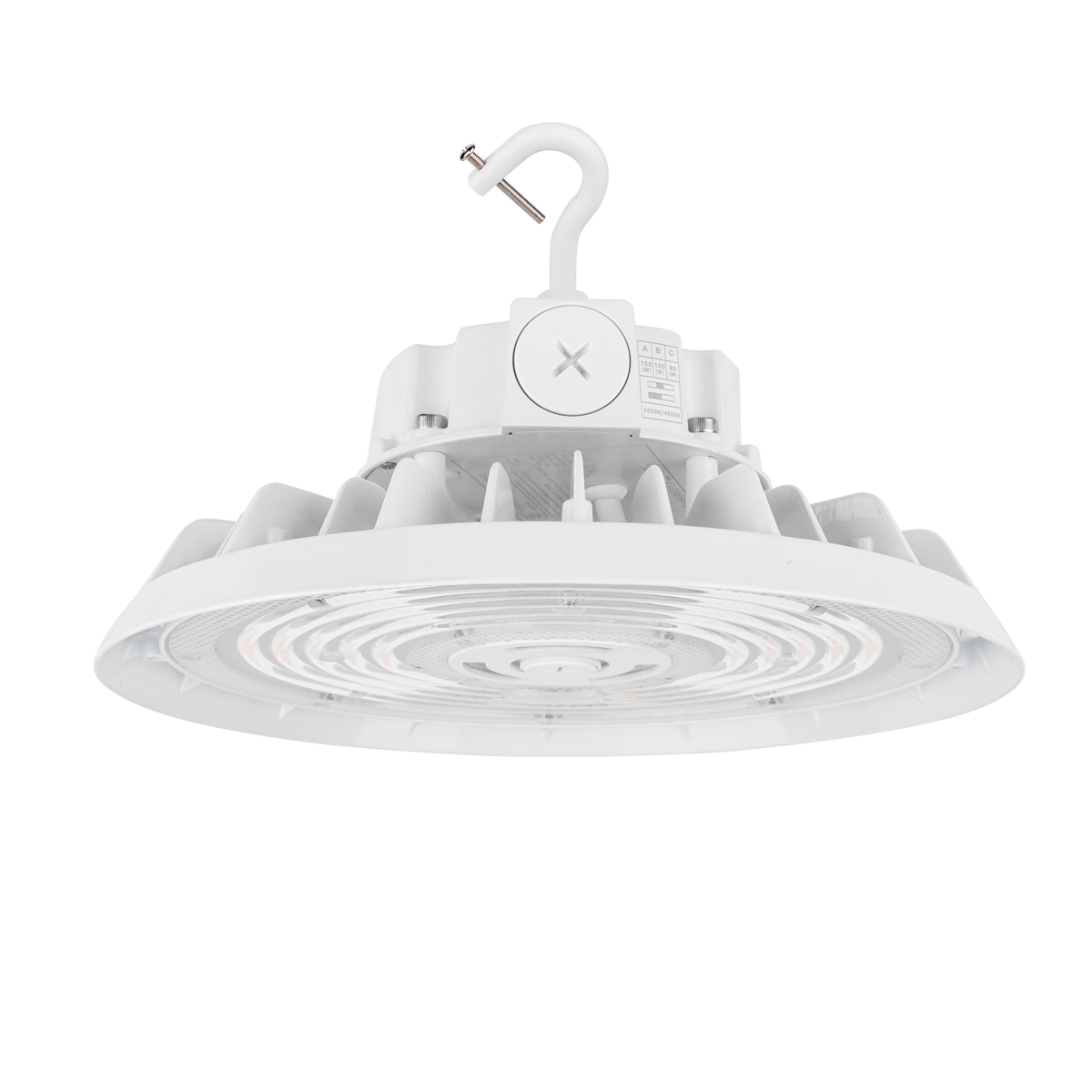

Wattage & Lumens 150W Selectable (80/100/150W), 13,200 to 23,250 lumens
200W Selectable (100/150/200W), 16,350 to 30,900 lumens

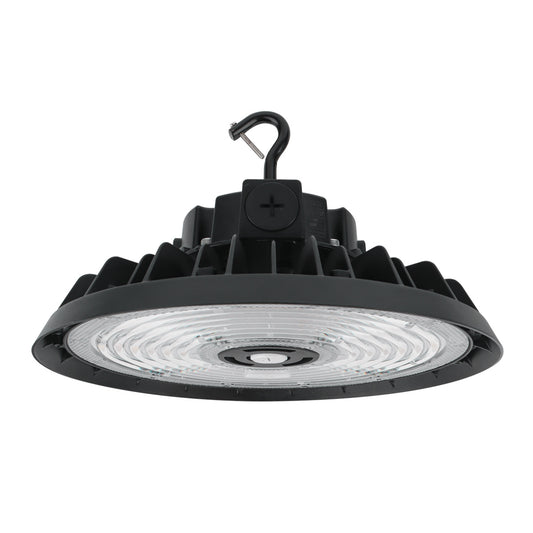

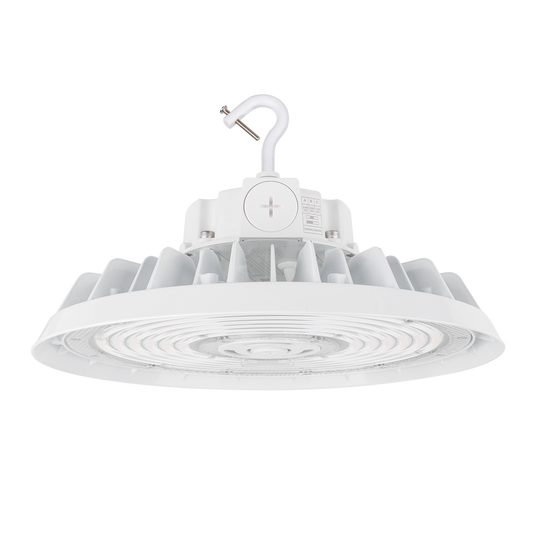

240W Selectable (150/200/240W), 24,500 to 37,450 lumens

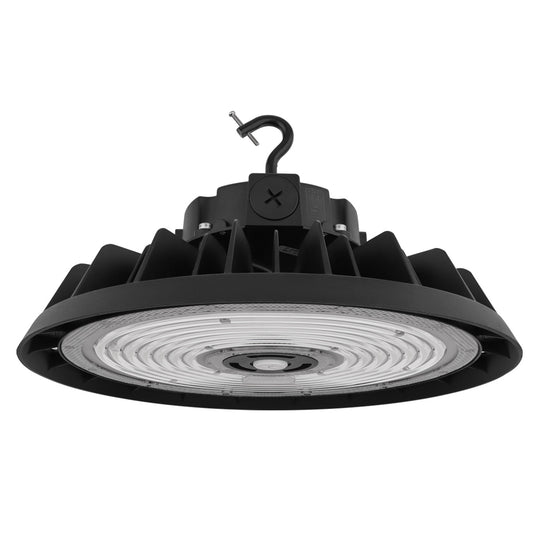

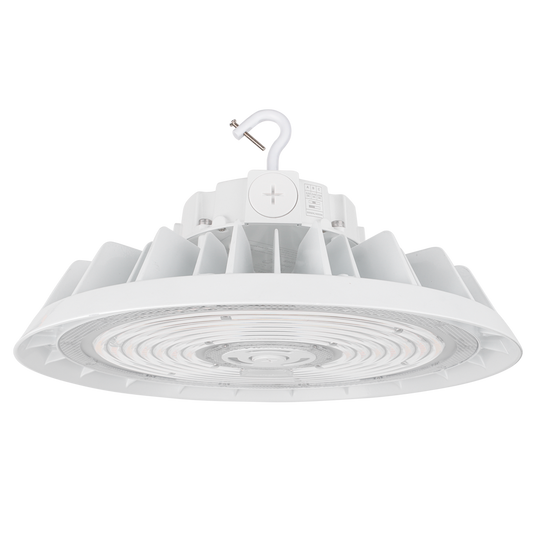

320W Selectable (200/240/320W), 33,100 to 49,900 lumens
System Efficacy 151 to 171 lm/W
CRI 80
CCT 4000K/5000K Selectable
Beam Angle Medium distribution
Dimming 0-10V
Input Voltage 120-277VAC
Mounting G Hook
Warranty 5 Years
Certifications DLC Premium, UL
