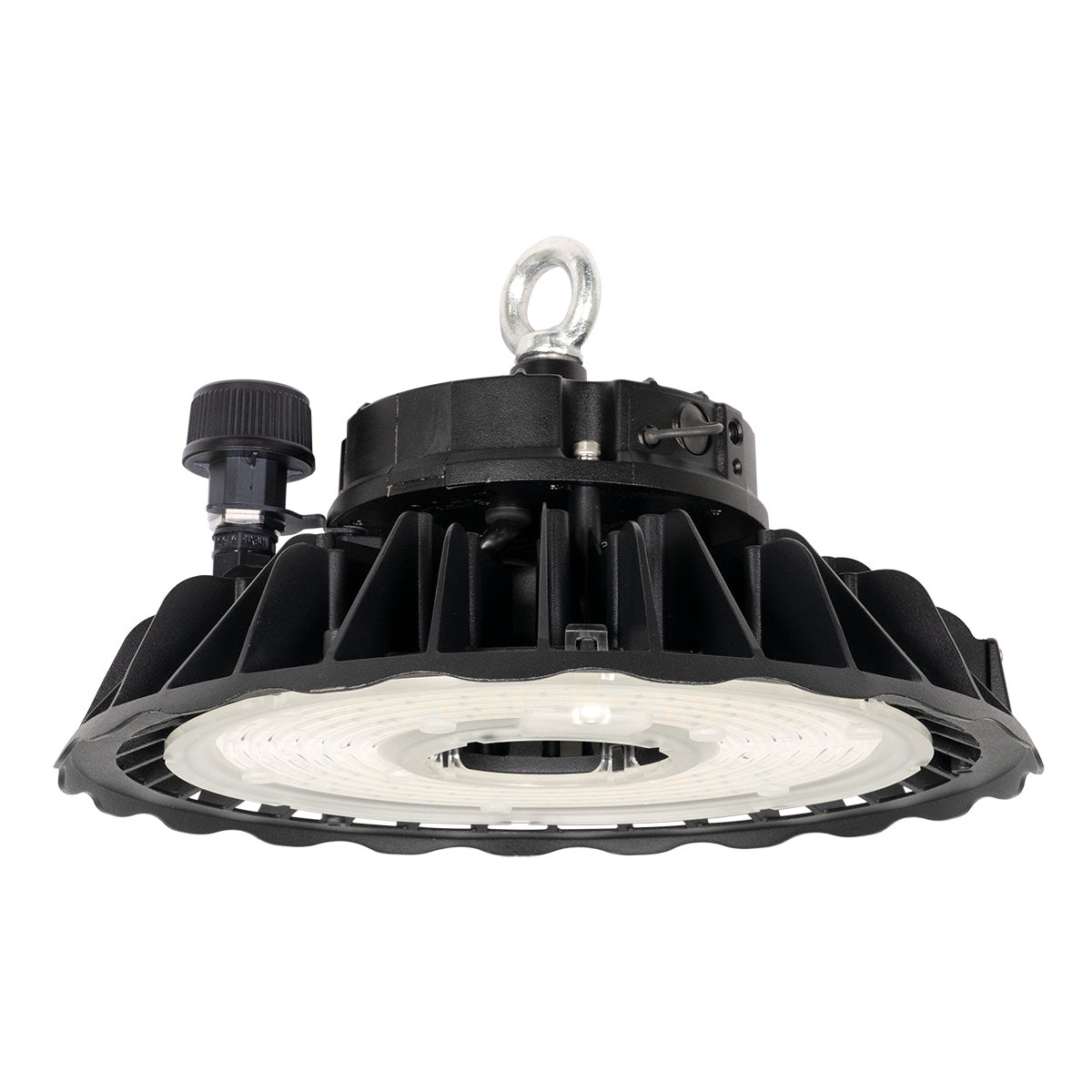

RHB Series Round LED High Bay
RHB Series Round LED High Bay
One high bay series meets a whole range of lighting needs.
- Wattage selectable drivers
- CCT-selectable with 4000K & 5000K settings
- Output from 9,000 to 30,018 lumens
- IP65 & IK08 Rated
- 5-Year Warranty
Our RHB Series Round LED High Bay Field Selectable lights offer reliable, customizable illumination for high ceilings in all kinds of applications. Choose from three base models, all CCT and wattage configurable in the field. Each model can be further customized with beam angle options, sensor accessories, and more. IP65- and IK08-rated, these LED high bay luminaires are designed for commercial, industrial, indoor sports, and retail use.
Featured Quick Ship RHB Series Round LED High Bay
All RHB series round led high bay lights are wattage and color selectable, with 150 lm/W luminous efficacy and three beam angle options to suit wide- to narrow-angle high ceiling lighting needs. Below is our featured Quick Ship model. For additional models, refer to the RHB Series LED High Bay Datasheet.
-
RHB-200 LED UFO High Bay
- 200W, 150W, 120W & 100W
- 15,000 - 30,018 lumens
- 4000K & 5000K CCT
- 120° beam angle
Additional Options:
90° or 60° beam angle200W, 150W, 120W & 100WRHB-200 LED UFO High Bay
- 15,000 - 30,018 lumens
- 4000K & 5000K CCT
- 120° beam angle
Additional Options:
90° or 60° beam angle
*IES file links on this page may not contain an IES file for every available configuration of the model.
DETAILS
Transform Your High Ceiling Spaces
Durable and versatile, our field-selectable high bay UFO LED lights are ideal for illuminating large spaces with high ceilings. Choose between three powerful base models that put out up to 15,000, 22,500, or 30,000 lumens respectively. All three high bay LED light models offer 4000K and 5000K color temperature options, selectable at installation. Enjoy customizable high bay and warehouse lighting that perfectly fits your needs.
Robust Features for Unmatched Performance
Our high bay LED lights come packed with features designed to improve efficiency and longevity:
- Heavy-duty housing that carries an IP65 & IK08 rating, ensuring the fixtures stand up to the demands of industrial or indoor sports environments.
- Choose from a wide, 120-degree beam angle or narrower 90-degree and 60-degree beam angles
- 4000K & 5000K CCT selectable at install
- Built-in wattage settings allow for selection of desired luminous output for each luminaire
- 0-10V dimming capability provides precise control over light intensity
- Available Microwave & PIR sensors allow for enhanced energy savings
- Includes stainless steel loop for hanging, or mount directly to the ceiling with the available ceiling mount bracket
- Built-in surge protection safeguards the fixture from electrical damage
Fast Payback
These field-selectable round high bay LED lights are rebate eligible, providing potential cost savings and a lower total cost of ownership when paired with financial incentives offered by many utility providers. They also qualify for tax incentives. Between those financial incentives and the lights' high 150 lm/W efficacy that ensure low energy costs, it's possible to realize a payback on your investment in under a year.
Invest in these UFO LED lights and transform your high ceiling spaces with superior, energy-efficient illumination.
KEY SPECIFICATIONS
| Lumens Package | Dependent on power selected at install. 100W model offers 9,000, 12,000, and 15,000 lumens 150W model offers 12,000, 15,000, 18,000, and 22,500 lumens 200W model offers 15,000, 18,000, 21,000, and 30,018 lumens |
| System Efficacy | 140 lm/W to 150 lm/W |
| CRI | >80 (>70 available by special order) |
| CCT | 4000K & 5000K, selectable at install |
| Beam Angle | 120°. Accessory optics lens available for 90° or 60°. Aluminum reflector available for 90°, 110° or 65°. Polycarbonate reflector available for 90°. |
| Controls | 0-10V dimming included, microwave or PIR sensor available |
| Enclosure Rating | IP65, IK08 |
| System Watts |
100W model: Wattage selectable driver with 100W, 80W, and 60W settings 150W model: Wattage selectable driver with 150W, 120W, 100W, and 80W settings 200W model: Wattage selectable driver with 200W, 150W, 120W, and 100W settings |
| Input Voltage | 100-277VAC |
| Surge Protection | 4kV line-line, 6kV line-earth |
| Warranty | 5 Years |
| Certifications | DLC, ETL |
| DLC Listing Primary Use Category | High-Bay Luminaires for Commercial and Industrial Buildings |
Accessories
Optics lenses: Convert your fixtures to 90-degree or 60-degree beam angle with optional, easy-install optics lens.
Reflectors: Available in black or silver aluminum or clear polycarbonate. The aluminum reflector is available in a 90-degree, 110-degree, or 65-degree beam angle. The polycarbonate reflector produces a 90-degree beam angle.
Adjustable mounting brackets: Mount on ceiling or wall with a durable, powder-coated ±30° or ±45° mounting bracket.
Sensors: Install a PIR or microwave motion sensor. 12Vdc input, IP65 rating. Maximum detection height is 49 feet. Requires a plug-and-play sensor base. Also available: remote controller for PIR or microwave motion sensors.
Safety chain: Stainless steel chain with carabiner end is available in 9.84 in, 3.3 ft, 4.9 ft, or 16.4 ft.
