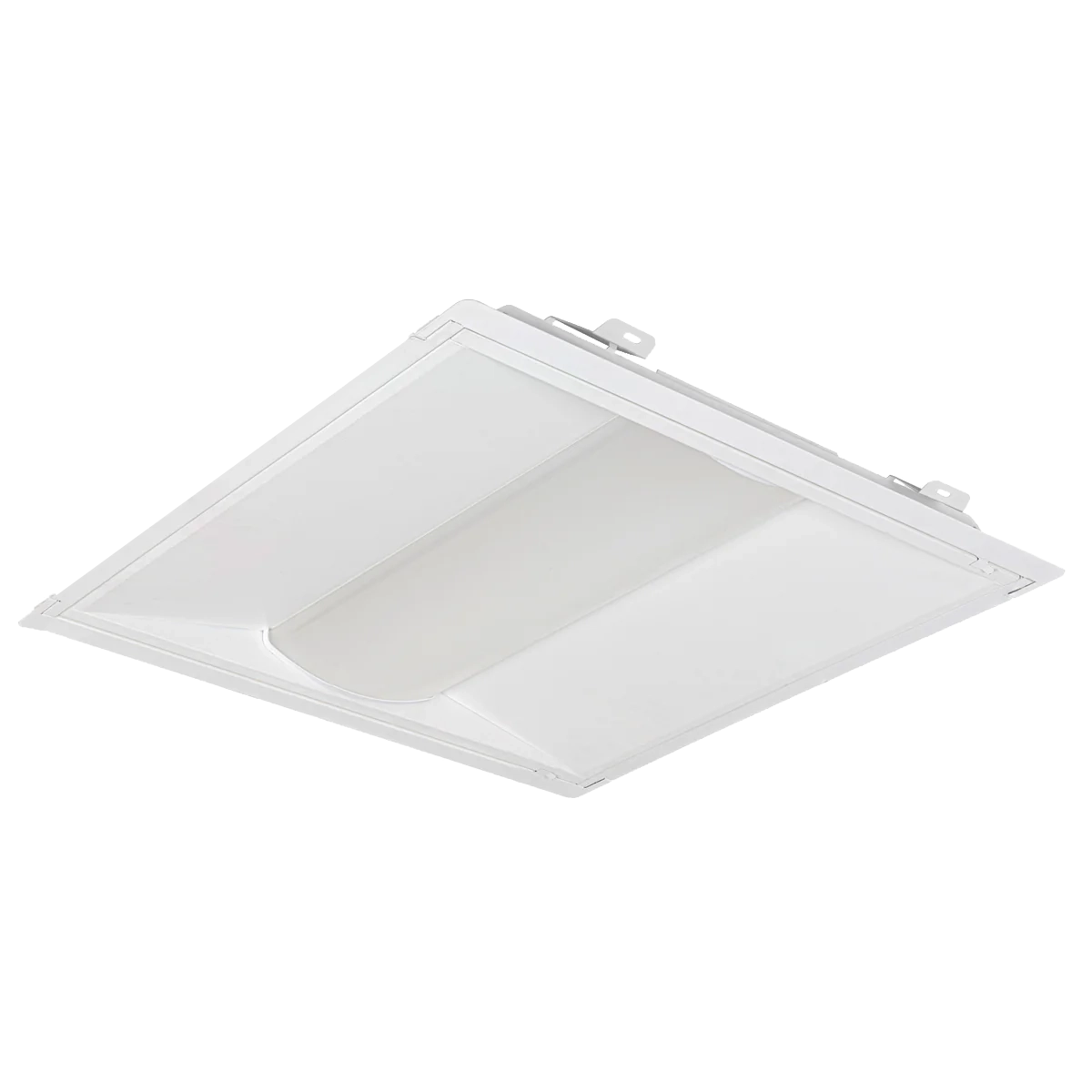

TK01 Series Troffer Retrofit

TK01 Series Troffer Retrofit

Modernize fluorescent troffers with a hybrid LED retrofit solution that combines the benefits of a new fixture with the simplicity of a retrofit. The TK01 Series replaces the face and light source of existing troffers while retaining the original housing, minimizing upgrade costs and installation time.

  • Hybrid Retrofit Design
  • Wattage Selectable from 20W to 45W options
  • CCT Selectable: 3500K/4000K/5000K
  • High Lumen Output: Up to 5,750 lumens
  • 1-10V Dimming Compatibility
  • 5-Year Warranty
DLC Premium UL Listed Wattage Selectable CCT Selectable CRI 80 0-10V Dimming
View full details

DETAILS

Give Traditional Troffers an Energy Saving Facelift

The TK01 Series offers the best of both worlds—enhanced performance and energy savings without the complexity of full fixture replacements.

Hybrid Retrofit Design

This integrated solution replaces the face and light engine of the fixture while utilizing the original troffer housing, reducing material & labor costs and keeping the install process simple.

Customizable Light Output

Selectable wattage and CCT options allow users to fine-tune brightness and color temperature, ensuring optimal performance in various settings.

Long-Lasting Reliable Performance

With a 50,000-hour lifespan and high-lumen efficacy, the TK01 Series is sure to provide durable, low-maintenance operation for 5+ years.

Applications

Ideal for offices, schools, retail stores, healthcare facilities, and other commercial interiors.

*IES file links on this page may not contain an IES file for every available configuration of the model.

Quick Ship TK01 LED Troffer Retrofits

DOWNLOADS

Download Spec Sheet Spec Sheet - TK01 Troffer Retrofit Kit

KEY SPECIFICATIONS

Wattage & Lumens 1'x4' 35W Selectable (20/25/30W), 2,686/3,399/3,988 lumens
2'x2' 35W Selectable (20/25/30W), 2,818/3,377/3,986 lumens
2'x4' 50W Selectable (34/38/45W), 4,538/5,185/5,750 lumens
System Efficacy 127 to 141 lm/W
CRI 80
CCT 3500K/4000K/5000K Selectable
Beam Angle 113°
Dimming 0-10V
Input Voltage 120-277VAC
Mounting Embedded Installation into existing fluorescent troffers
Warranty 5 Years
Certifications DLC Premium, UL
