DETAILS
Sleek, Modern Lighting for T-Grid Ceilings

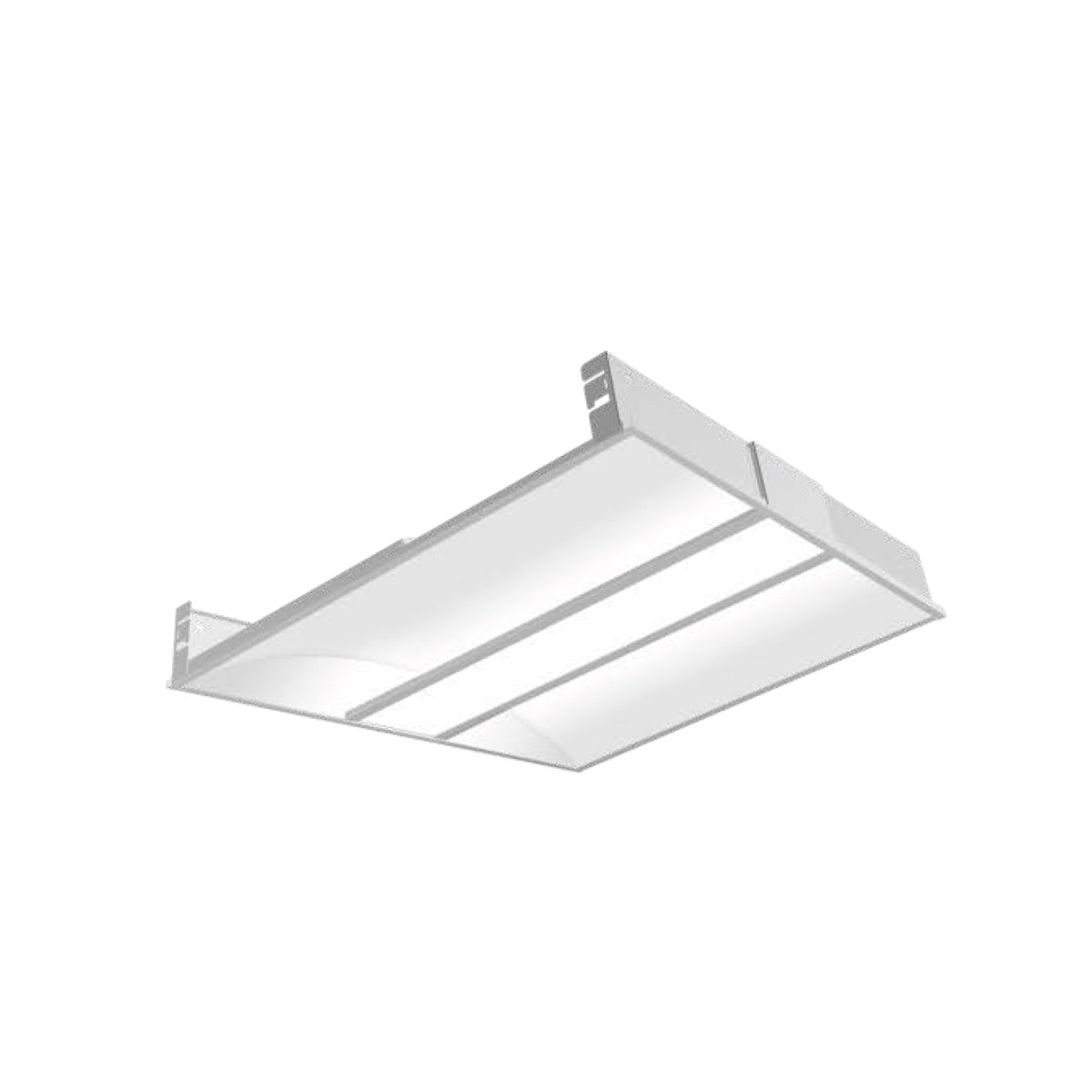

The TR02 indirect "floating air" LED troffer combines a traditional modern design with cutting-edge lighting technology, offering superior optical performance and energy efficiency for many commercial and institutional applications.
Sleek Design and Superior Performance
Engineered with transparent optics and a powder-coated aluminum housing, this troffer provides a unique translucent appearance without sacrificing performance. Its ultra-minimalistic, shallow recessed form factor fits most T-grid systems, making it ideal for office buildings, medical facilities, schools, retail environments, and public spaces.
Flexible Control and Optional Features
This troffer includes 1-10V dimming for flexible light control and offers optional features like motion sensors and an 8W emergency driver (available by special order). These features enhance functionality and adaptability for a wide range of applications.
Ideal for Commercial and Institutional Spaces
Designed for durability and energy efficiency, this LED troffer is perfect for office buildings, medical facilities, educational institutions, retail environments, and public spaces. Its high-quality optics and modern design ensure a clean, contemporary aesthetic while providing optimal illumination.
DOWNLOADS
*IES file links on this page may not contain an IES file for every available configuration of the model.
TR02 Indirect Troffers
-
TR02 1x2 Indirect "Floating Air" Troffer
- 10/15/20W
- 1,150 to 2,300 lumens
- 3000K/3500K/4000K Selectable
10/15/20WTR02 1x2 Indirect "Floating Air" Troffer
- 1,150 to 2,300 lumens
- 3000K/3500K/4000K Selectable
-
TR02 2x2 Indirect "Floating Air" Troffer
- 20/30/40W
- 2,200 to 4,400 lumens
- 3000K/3500K/4000K Selectable
20/30/40WTR02 2x2 Indirect "Floating Air" Troffer
- 2,200 to 4,400 lumens
- 3000K/3500K/4000K Selectable
-
TR02 2x4 Indirect "Floating Air" Troffer
- 30/40/50W
- 3,300 to 5,500 lumens
- 3000K/3500K/4000K Selectable
30/40/50WTR02 2x4 Indirect "Floating Air" Troffer
- 3,300 to 5,500 lumens
- 3000K/3500K/4000K Selectable
KEY SPECIFICATIONS
Wattage & Lumens | 1' x 2' 20W Selectable (10/15/20W), 1,150 to 2,300 lumens 2' x 2' 40W Selectable (20/30/40W), 2,200 to 4,400 lumens 2' x 4' 50W Selectable (30/40/50W), 3,300 to 5,500 lumens |
System Efficacy | 110 to 115 lm/W |
CRI | 80 |
CCT | 3000K/3500K/4000K Selectable |
Beam Angle | 113° |
Dimming | 1-10V |
Input Voltage | 120-277VAC |
Mounting | Recessed installation for most T-grids/td> |
Warranty | 5 Years |
Certifications | DLC (2’x2’ & 2’x4’ models only), UL |
