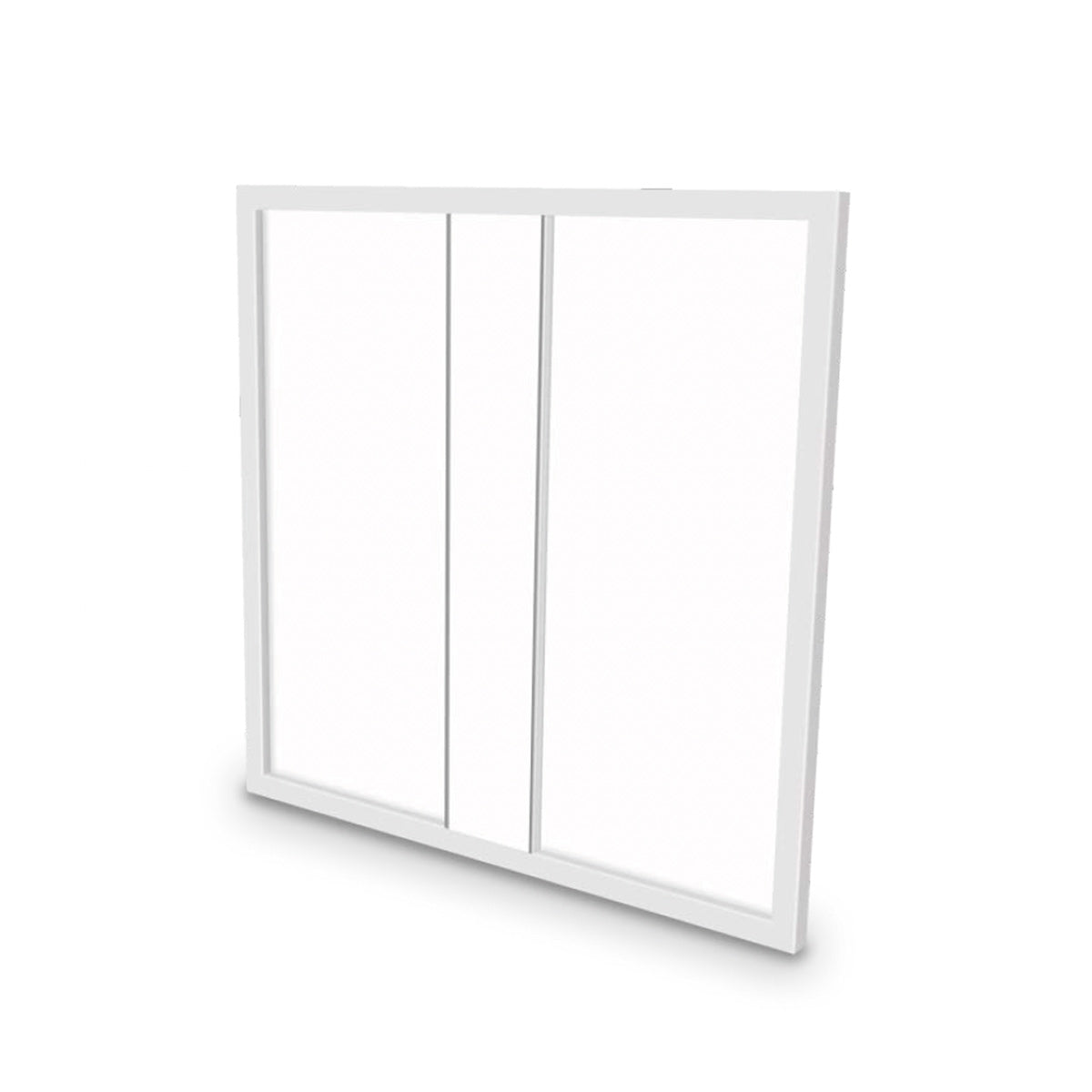

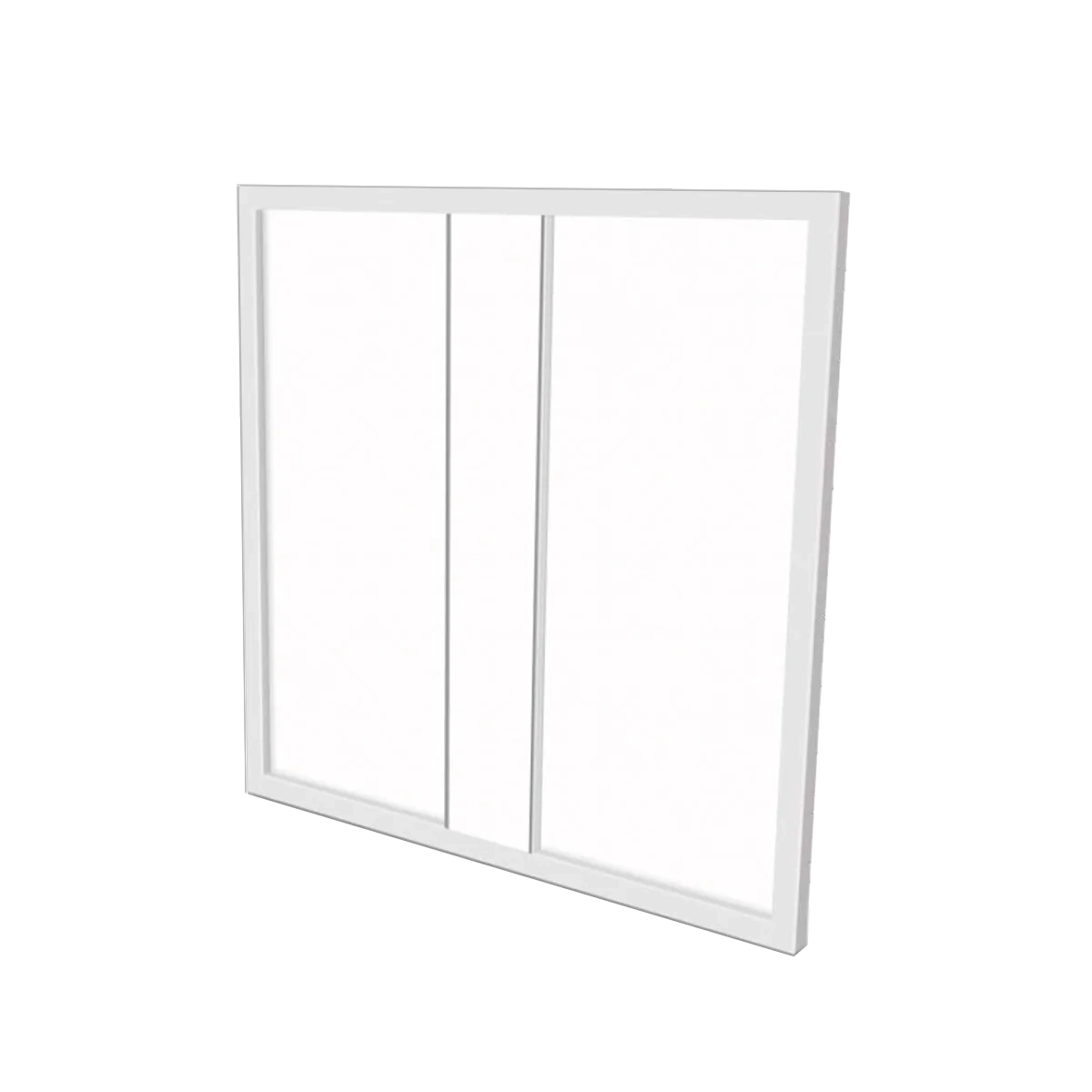

TR03 Series Floating Back-Lit Troffer

TR03 Series Floating Back-Lit Troffer

Elevate your space with the TR03 floating back-lit LED troffer—a lighting solution that combines modern aesthetics, energy efficiency, and exceptional functionality.

  • 2,750 to 6,250 lumens
  • 3500K/4000K/5000K selectable CCT
  • 80 CRI
  • 1-10V dimming
DLC Listed DLC Premium UL Listed Wattage Selectable CCT Selectable CRI 80 1-10V Dimming
View full details

DETAILS

Modern Lighting for Comfort and Efficiency

Transform your commercial or institutional space with the TR03 floating back-lit LED troffer, a sleek and modern lighting solution that combines cutting-edge technology with a minimalist design.

Soft, Uniform Illumination

Featuring back-lit LED technology, the TR03 creates a soft, comfortable lighting experience that reduces glare and enhances visual comfort. It also includes 1-10V dimming for flexible light control, with optional motion sensing available for added convenience.

Customizable and Energy-Efficient

This troffer offers adjustable CCT (3500K, 4000K, 5000K) and wattage selectability, allowing you to tailor the lighting to your needs. Choose between 110 lm/W (DLC standard) or 125 lm/W (DLC Premium) efficacy for maximum energy savings and performance.

Easy Install

Designed for compatibility with most 15/16" and 9/16" T-grid systems, the TR03 features simple wiring to save on labor costs. Its low profile makes it ideal for spaces with low plenum heights.

Applications

The TR03 is perfect for open-concept offices, classrooms, retail spaces, healthcare facilities, and other commercial or institutional environments. Its modern design and superior energy performance make it a versatile and stylish lighting solution.

DOWNLOADS

Download Spec Sheet Spec Sheet - TR03 Direct Lighting Troffer

Download Install Guide Installation Manual - TR03 Direct Lighting Troffer

*IES file links on this page may not contain an IES file for every available configuration of the model.

TR03 Direct Troffers

KEY SPECIFICATIONS

Wattage & Lumens 1'x4' 35W Selectable (25/30/35W), 2,750 to 4,375 lumens
2'x2' 35W Selectable (25/30/35W), 2,750 to 4,375 lumens
2'x'4' 50W Selectable (30/40/50W), 3,750 to 6,250 lumens
System Efficacy 110 lm/W (standard) or 125 lm/W (premium)
CRI 80
CCT 3000K/4000K/5000K Selectable
Beam Angle 110°
Dimming 1-10V
Input Voltage 110-277VAC
Mounting Recessed installation for most 15/16" and 9/16" T-grids/td>
Warranty 5 Years
Certifications DLC Standard, DLC Premium (2’x2’ & 2’x4’ -H models only), UL
