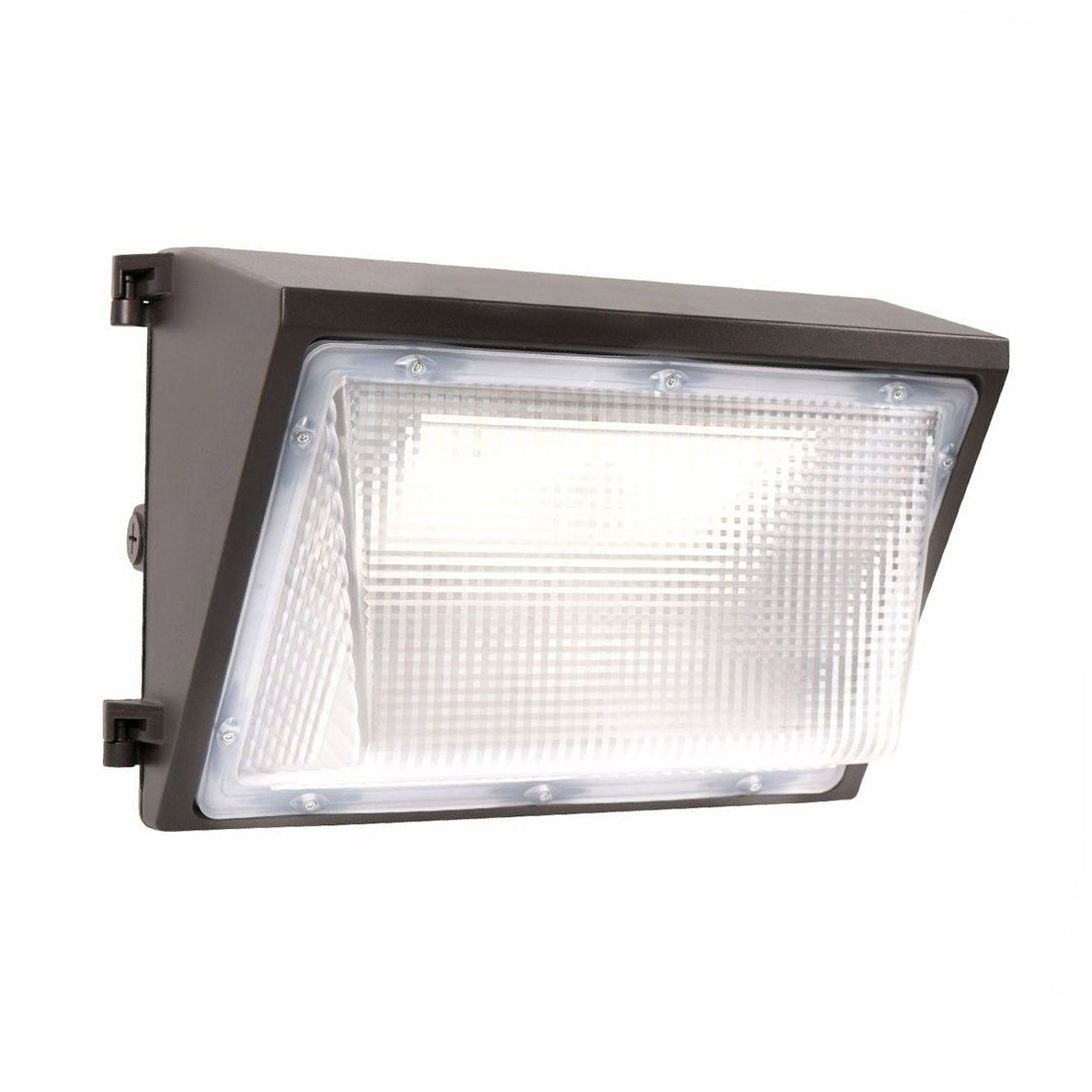

WPS Series Semi-Cutoff LED Wall Pack

WPS Series Semi-Cutoff LED Wall Pack

Our WPS Series of LED wall packs ensure safe, brightly lit walkways, entrances, parking garages, carports, loading docks, hospitals, and other general and security illumination. The light emits up to 15,000 lumens of bright cold white light (5000K) with an efficacy up to 128 lumens per watt. Its die-cast aluminum enclosure resists corrosion, dust, insects, and weather. Maximize your energy savings with these all-weather fixtures. Replaces up to 1000W.

  • Fixed or selectable power & CCT
  • Choose photocell for dusk-to-dawn operation
  • Emergency lighting models available
DLC Listed UL Listed Wattage Selectable CCT Selectable 120-277V 1-10V Dimming
View full details

Featured WPS Models—Selectable Power and CCT

All the best features of the fixed models with the extra flexibility offered by field-selectable power and color temperature settings. For additional configurations, refer to the WPS Series LED Wall Packs datasheet.

*IES file links on this page may not contain an IES file for every available configuration of the model.

DETAILS

Dependable semi-cutoff style wall packs provide a traditional look without the traditional energy bill. Enjoy brilliant, reliable lighting, reduced maintenance costs, and low energy costs with our WPS series of LED wall packs.

  • High quality, UV resistant optical lens
  • Prismatic design for excellent light distribution and uniformity
  • Lumen packages available from 3,400 to 15,000 lumens
  • 1-10V dimming for control over light levels
  • Choose photocell option for automatic dusk-to-dawn operation
  • Built in leveling bubble speeds up installation
  • Sealed, die-cast housing for durability
  • Emergency battery models provide an additional 90 minutes of operation during power outages
  • Rebate eligible

DOWNLOADS

Download Spec Sheet WPS Series LED Semi-Cutoff Wall Packs PDF Datasheet

KEY SPECIFICATIONS

Lumens Package 30W, Up to 3,500 lumens
40W, Up to 5,100 lumens
65W, Up to 7,900 lumens
90W, 10,500 lumens
125W, 15,000 lumens
65W Selectable (65/52/39/26W), Up to 8,300 lumens
100W Selectable (100/80/60/40W), Up to 12,000 lumens
System Efficacy Up to 128 lm/W
CRI 70
CCT 4000K, 5000K, or 3000K/4000K/5000K Selectable
Enclosure Rating cUL Wet Location
Mounting Wall Mount, Junction Box Mount, 1/2” NPS Conduit Mount
Input Voltage 120-277 VAC
Housing Die Cast Aluminum Housing, Polycarbonate Optical Lens
Finish Dark Bronze (Standard), Black, White
Warranty 5 Years
Certifications DLC, UL
DLC Listing Primary Use Category Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
